| Automatic antenna switching (2025/05/17) | ||||
|---|---|---|---|---|

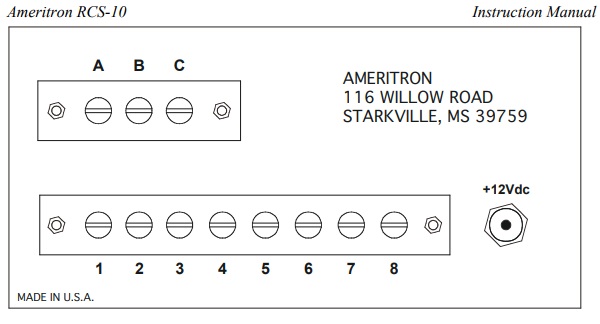

I am using the now defunct MFJ/AMERITRON Remote Coax Switch RCS-10

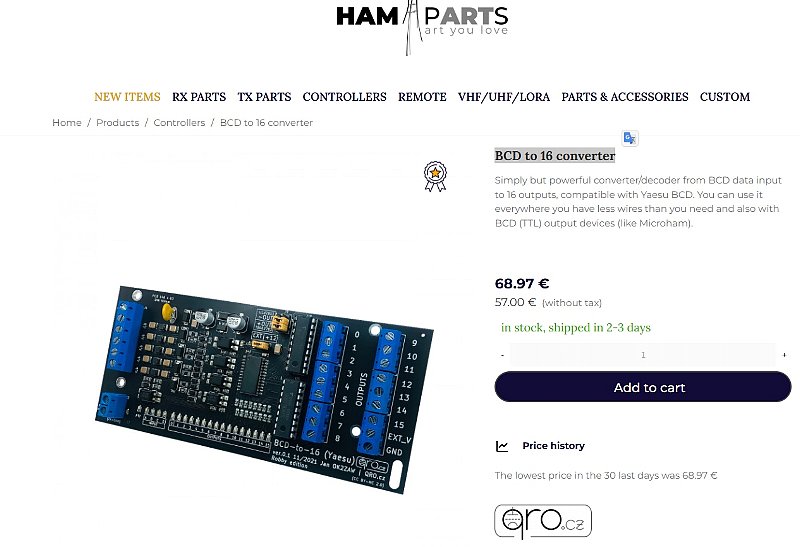

After switching the band of the radio with four antennas to switch. I often accidentally forget to switch the RCS-10 antenna switcher So I was searching the Internet for a solution to solve the problem. OK2ZAW Jan Sustr'sHamparts.shopindicates certainty, emphasis, etc.BCD to 16 converterI found something called Product to obtain 16-point output from BANDDATA at LINEAR terminal of YAESU radio manual 69 euros approx. 11,000 yen 4,300 pesos  |
||||

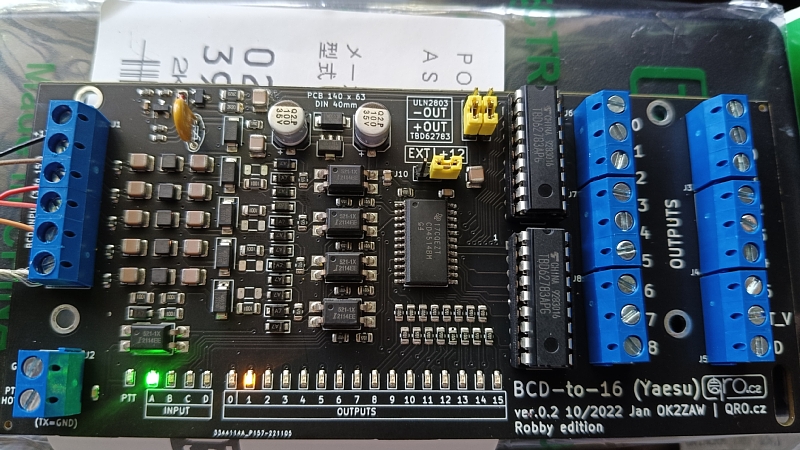

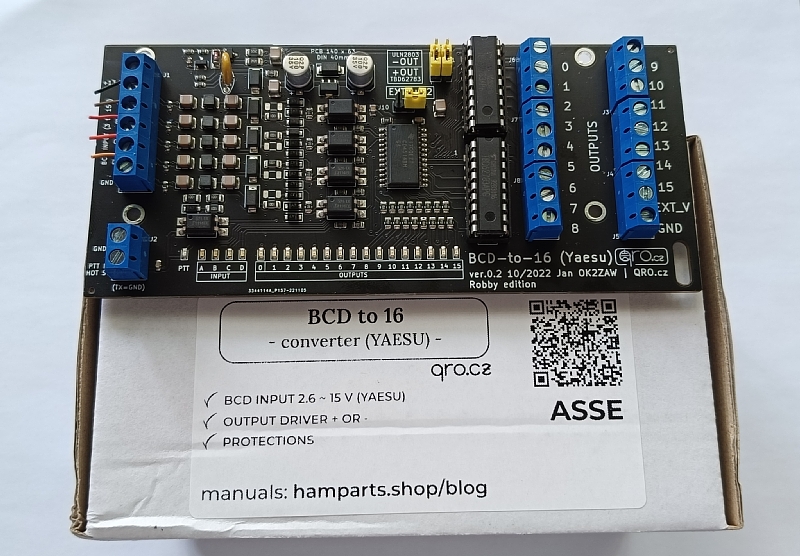

| Ordered after numerous email exchanges with OK2ZAW Jan Shipped Czech Republic (Czechia) on April 11 and arrived in Ozamiz on May 16  |
||||
| Wiring the 15-pin DSUB that was ordered together with the FTDX3000 while reading the FTDX3000 manual Switch the band from 1.9MHz to 50MHz and confirm that the INPUT to OUTPUT works properly  |
||||

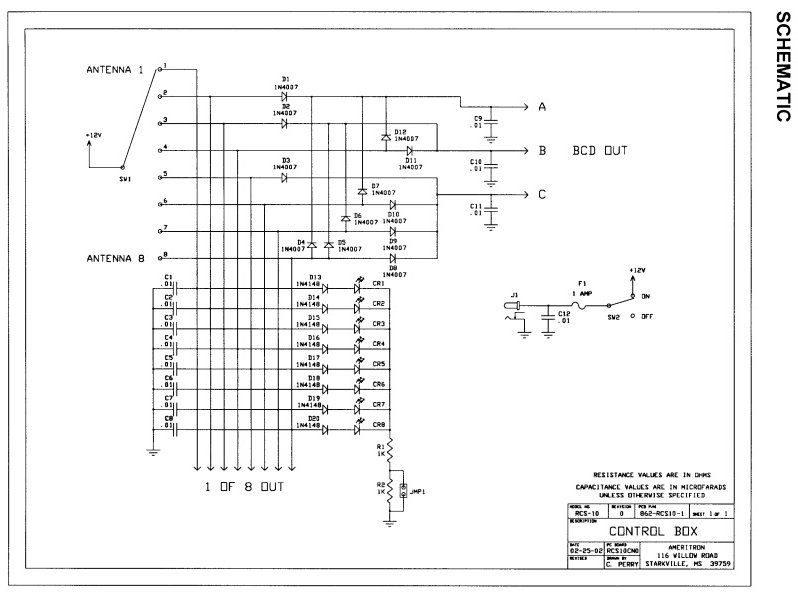

Next, check the RCS-10 schematic that Jan sent me. |
||||
Fortunately, the RCS-10 has eight input terminals.BCD to 16 converterConnect the output of |
||||

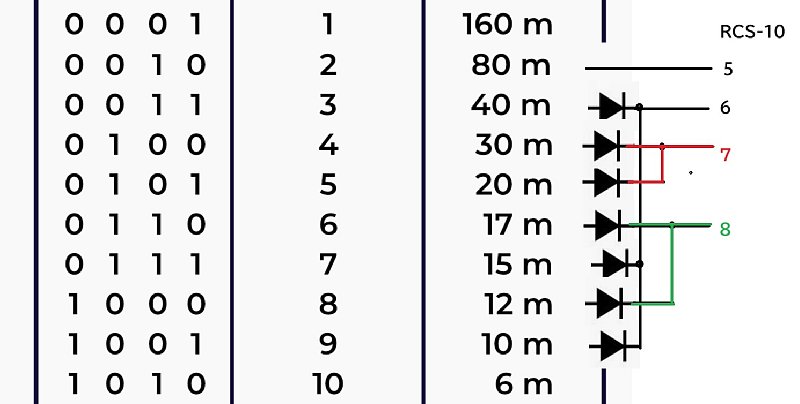

| Since the antennas are 3.5 MHz, 7-21-28 MHz, 10-14 MHz, and 18-24 MHz Diode matrix wiring of signals to be input to antenna switcher.  |
||||

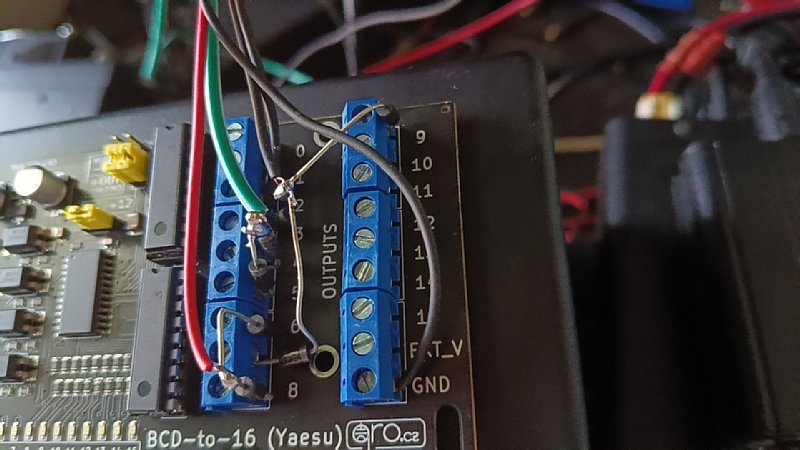

Dirty but diode aerial wiring |
||||

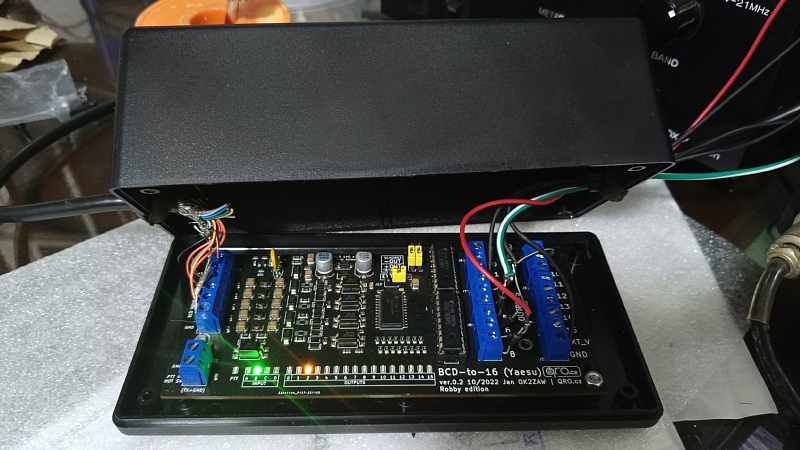

Completed in a Takachi TW9-6-17B case that I had previously purchased from Amazon Japan |
||||
