| Fox Delta ST2 interface for driving AC motor rotors (2025/10/13) | ||
|---|---|---|

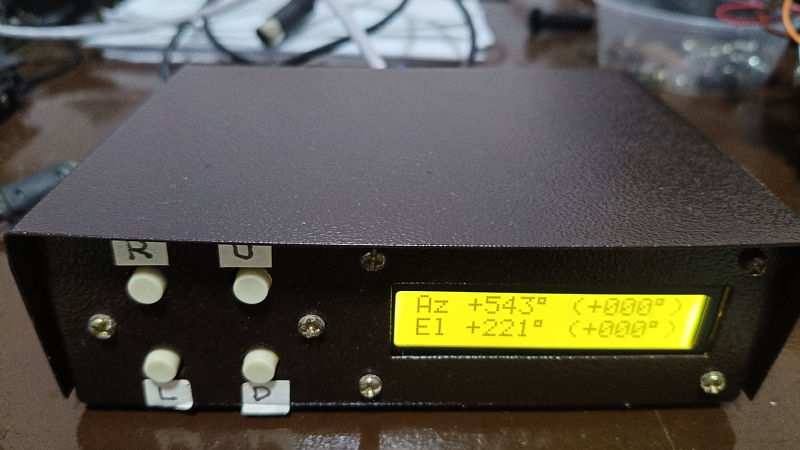

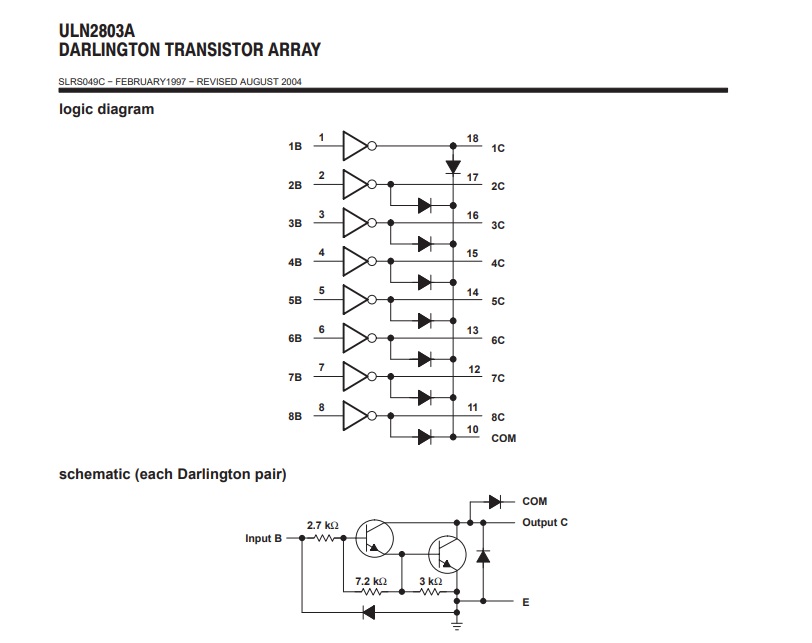

| The Fox Delta ST2 rotor controller was given to me along with the IC-820H. This single unit can control both the horizontal and elevation rotors. However, the output is DC open collector only. It seems to be a product targeted at the YAESU G-5500  |
||
This circuit alone cannot switch the AC motor rotor on and off. |
||

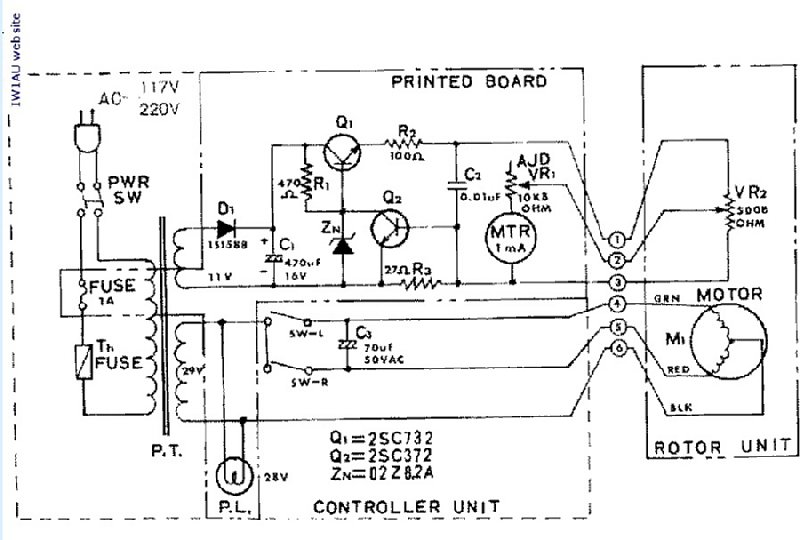

The common terminals 4 and 5 of SW-L and SW-R must be turned on with a relay.
|
||

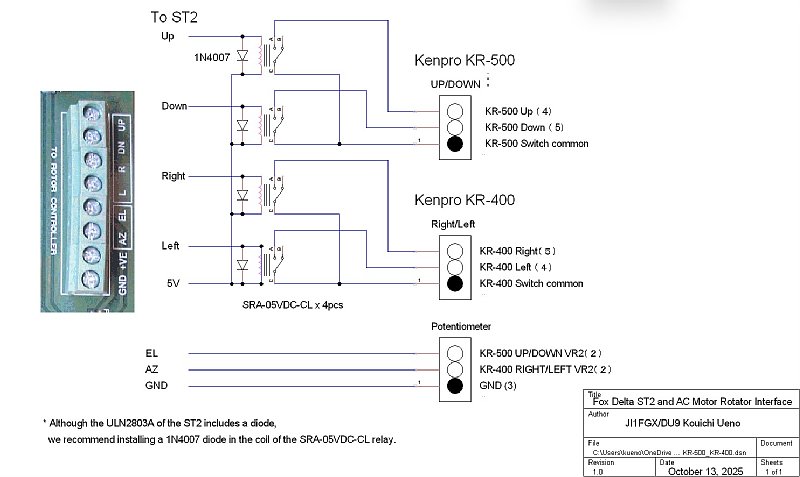

Therefore, the open collector output of ST2 operates a relay (SRA-05VDC-CL) to drive KR-500 and KR-400. |
||

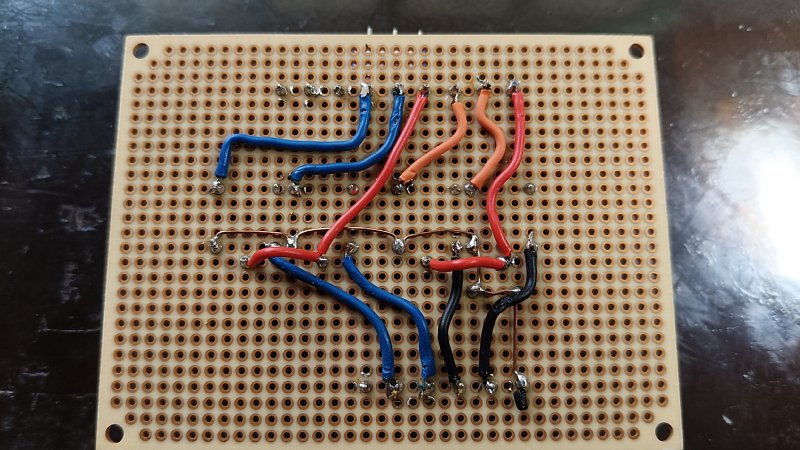

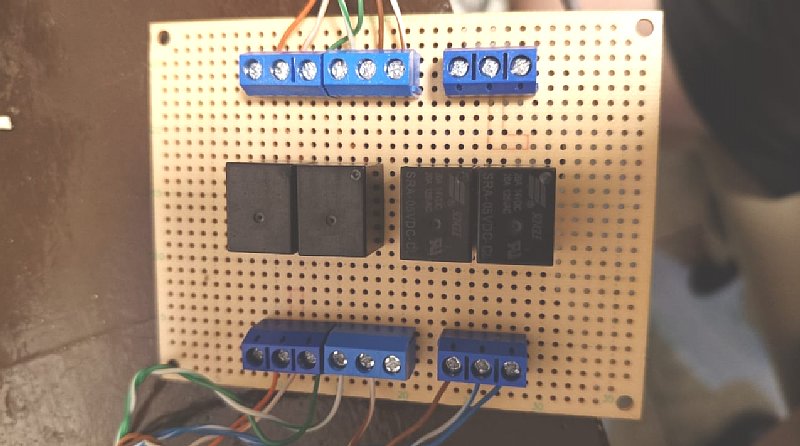

| I used a stock Janome circuit board and the SRA-05VDC-CL relay and terminal block I purchased. I purchased it through the usual Philippine online store, Shopee.  |
||
The only wire I could buy at the local parts store was thick, so the wiring isn't very neat, but it's complete. |
||

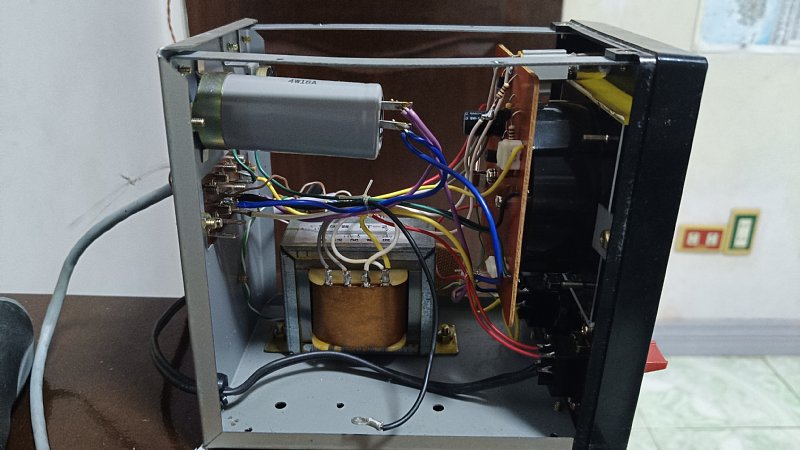

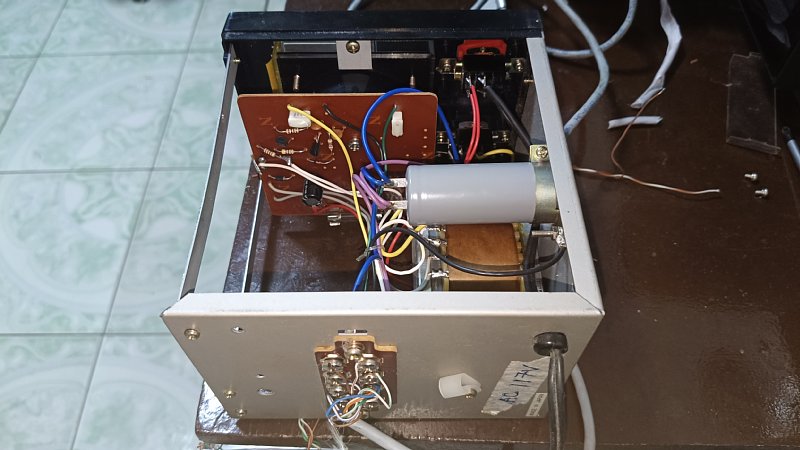

| I tried to put the interface I made into the Kenpro KR-500, but there was no space. The large electrolytic capacitor that is attached sideways is a nuisance  |
||

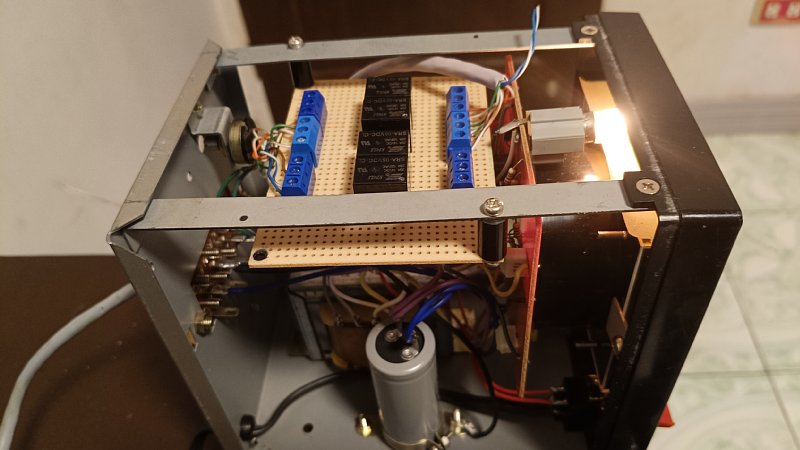

So I moved the electrolytic capacitors to make room for the interface board. |
||

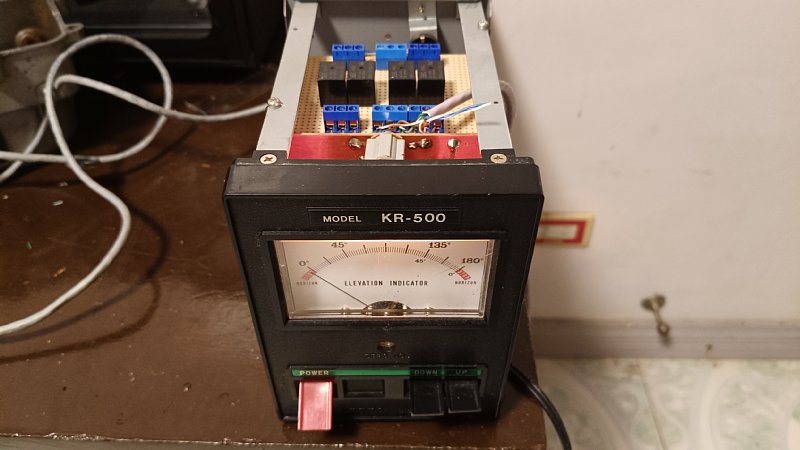

| A nicely fitted board. Miraculously, I had some 30mm spacers in stock, which helped me to mount the interface board.  |
||
| The broken potentiometer (B500Ω) and 6.8V Zener (BZX55C6V8 1/2W) should arrive this week. Once that arrives, the repair of the Kenpro Elevation Rotator KR-500 will be complete.  |
||

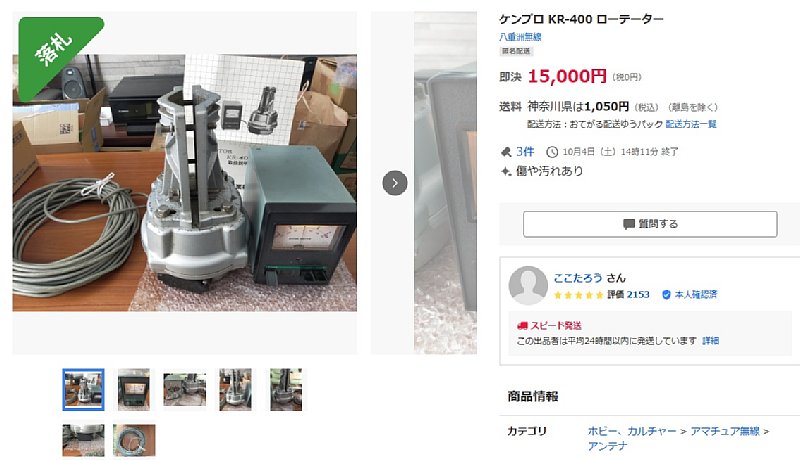

| I also had a friend send me a Kenpro KR-400 rotor that I won on a Japanese Yahoo auction via EMS. It will probably arrive in about a month to 40 days. This one also needs to be repaired as the potentiometer seems to be broken.  |
||
| October 12, 2025. October 13, 2025. |
