| Samway DXV500ZS linear amplifier repair (2025/02/28) | ||
|---|---|---|
| February 05, 2025andFebruary 23, 2025I wrote in my diary of I had parts sent from Japan to replace them, but they wouldn't turn on. So I consulted with him further, and he said that the FET was most likely short-circuiting. |
||

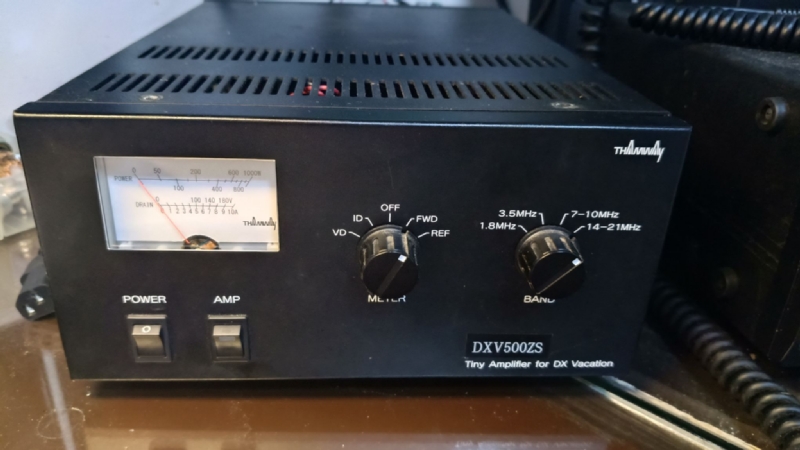

Samway DXV500ZS |
||

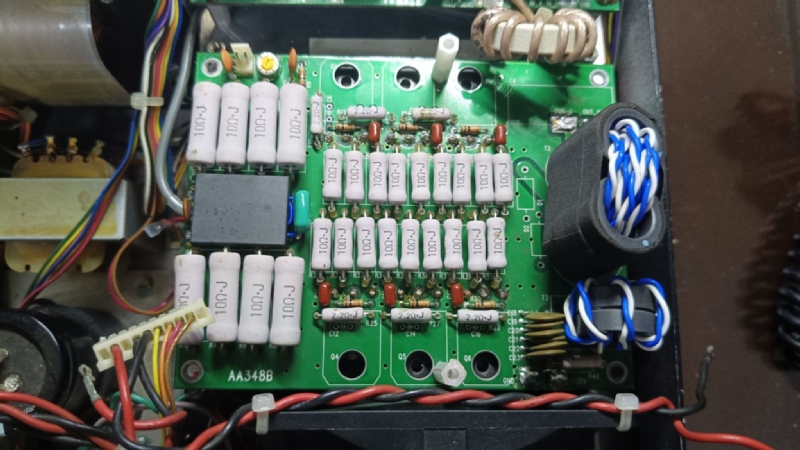

Board with power FETs |
||

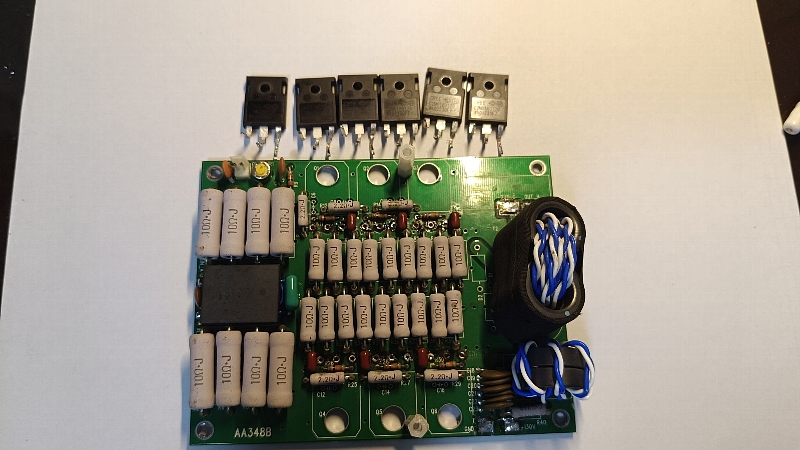

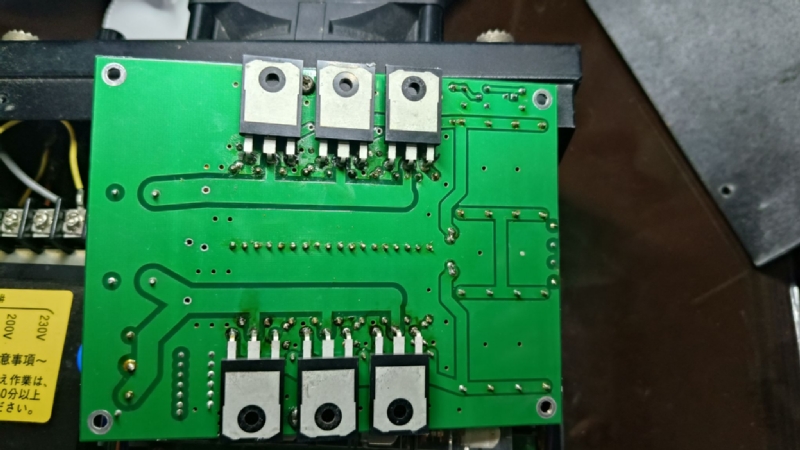

With 6 FETs C2M0160120 |
||

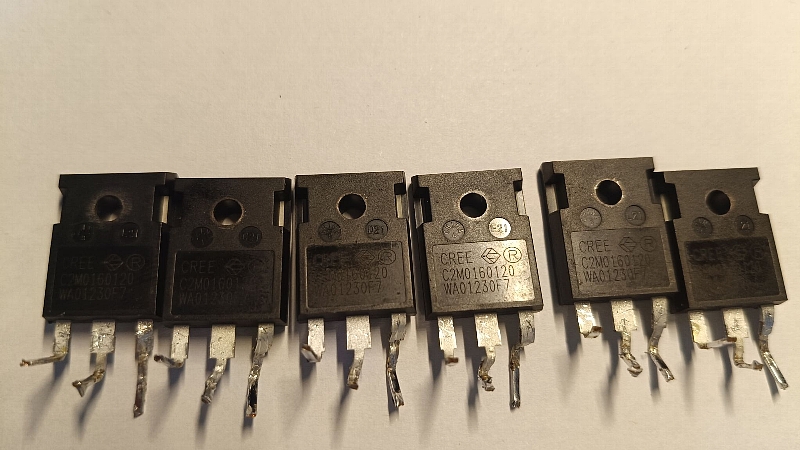

I had to use a soldering iron to melt the solder on the legs one by one, and pull the legs off the board with radio pliers. |
||
| I checked with a tester and found a short circuit between the gate and the source. The cost of 6 units at 1580 yen each is 9480 yen plus the EMS shipping cost, which is a painful expense.  |
||

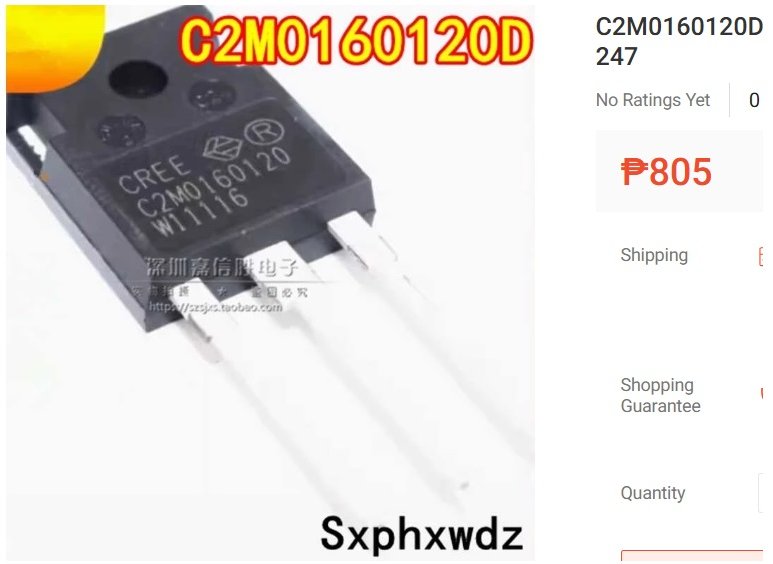

| It is sold at Shopee, a mail order store in the Philippines, but it is rather expensive at 805 pesos (about 2,150 yen) per piece. I will be purchasing from Samway.  |
||
| February 27, 2024 February 28, 2025 |
