This program has been tested with WSJT-X-2.7.1-devel. It didn't work properly with WSJT-X 2.6.1.
WSJT-X automated operation program.Ver0.0.9.It has been upgraded to. 1) Right-clicking on a QTH that has been previously contacted or is not yet contacted will display the uncontacted entities.
2) Enter the callsign in the Tx1 input field and press Enter to display the past communication records.
3) Finally, it supports English and German!
4) Added recovery for when a write error occurs in the JTDX log file wsjtx_log.adi.
This may only be my environment, but sometimes I get an error writing to wsjtx_log.adi.
5) Accordingly, the number of items on the settings screen has been increased.
6)JTDX automatic operation.The number of stations contacted when the is started and in automatic operation is now displayed.
7) The window position at startup is now recorded.
WSJT-X automatic operation program.
WSJT-X_AutoRun_Ver0.1.0.exe.
Configuration program.
WSJT-X_AutoRun_Setup_ver1.0.1.exe.
Installer.
Install_Ver1.0.1.exe.
Search for country names by prefix.
find_entity_service.exe.
Logging QSOs.
adi_to_db.1.0.exe.
SQL DB file for entity search.
dxcc_list.db.
Japanese manual.
WSJT-X_Automatic Operation Program Manual.pdf.
English manual.
WSJT-X_Auto_Operation_Manual_EN.pdf.
Japanese icons.
WSJT-X auto.ico.
English icon.
WSJT-XAutoRun.ico.

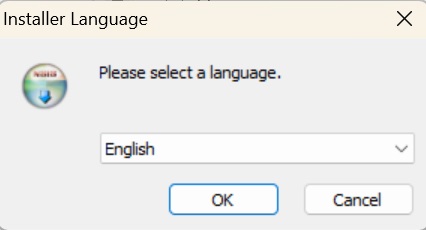

When you run Install_Ver1.0.1.exe, a combo box will open, allowing you to switch between Japanese and English.
The language selected here will be used to switch the language and icon of the shortcut created on the desktop.
The program itself automatically detects the OS language and switches between Japanese, English, and German.

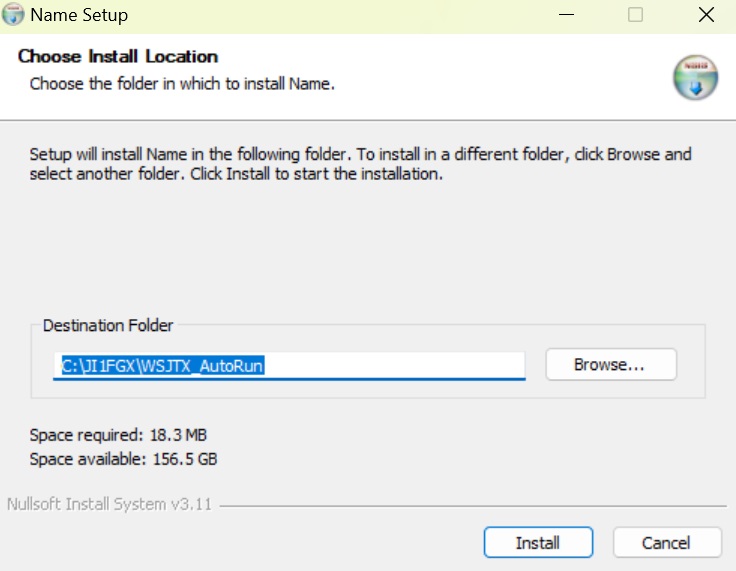

Choose the installation directory
I think the default is fine

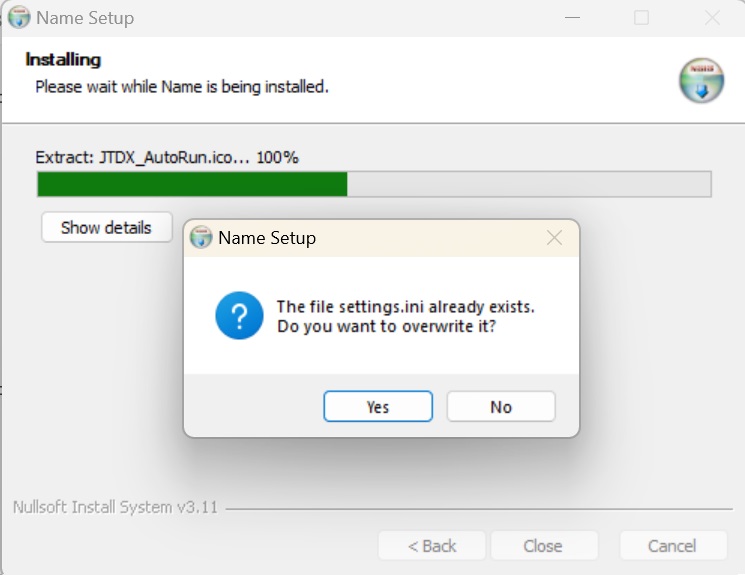

On subsequent installations, it will ask whether to replace settings.ini.
If you already have a WSJT-X coordinate recorded, select 'no'
operation
After clicking the 'Enable' button in WSJT-X, if it times out, 'Enable' will be automatically pressed again.
If you are calling another station or the retry during communication times out, 'Clear DX' will be pressed automatically followed by 'Start sending'.
After sending RR73 after the QSO is established, the 'Logging' window appears.When opened, 'OK' will be pressed automatically.
Pressing 'Stop' on the console will stop automatic operation. Double-clicking will also
turn off 'Enable'.
The WSJT-X window position is now preserved. It will remember where you left off and reappear in the same location.
The number of communications will be retained even if you exit and restart the program.
The number of contacts will be reset to zero when the date changes.
WSJT-X Autonomous Driving.is a program that does only these five things for the WSJT-X program.
caveat. The purpose of the development is solely to assist in operation while in front of the computer, not to operate it unmanned.
Some awards prohibit automated operation. Please be sure to operate in accordance with the radio wave laws of your country.
In Japan, packet radio TNCs are used for 24-hour unmanned operation, so I don't think there's a problem.
If anything happens, I, the creator, will not be held responsible.
Please use at your own risk.
The design philosophy of WSJT-X and JTDX is to exclude automated operation (unmanned operation), and we are aware that this software has received criticism.

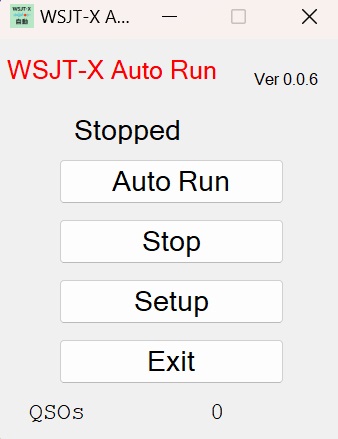

When you start WSJT-X_Automatic Operation.v0.5.0, this GUI will start.
Start of operation
WSJT-X will begin monitoring at the set timer interval.
Stop.
Set the timer to 0 and monitoring will stop.
Double-clicking also stops transmission
setting.
Sets the coordinates of the buttons in the WSJT-X window.
end.
The program will terminate.
Number of communications.
Number of stations in communication during automatic operation.
When the date changes, it is cleared to 0.

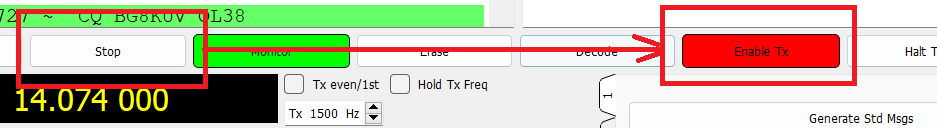

If you send a CQ and there is no response and the timeout expires, press 'Stop'-'Enable' to send a CQ again.
If you call another station or the retry timeout occurs during communication, you will automatically press 'Stop', then abandon the call and press 'Enable' to send a CQ.
I think 6 minutes is too long for WSJT-X 'Tx watchdog timer'.4 minutes.mosquito.5 minutes.I think shorter is better.
AlsoCQ will continue to be sent forever, so even though it is automatic, monitoring is required.
When the Log QSO window opens, 'OK' is automatically pressed to end the communication.
As a WSJT-X feature, you cannot send the next CQ. Press 'Stop' and then 'Enable'.
Before using it, you need to get the button coordinates with 'setting'.
Also, if you change the window size of WSJT-X, you will need to re-take the coordinates in the settings.

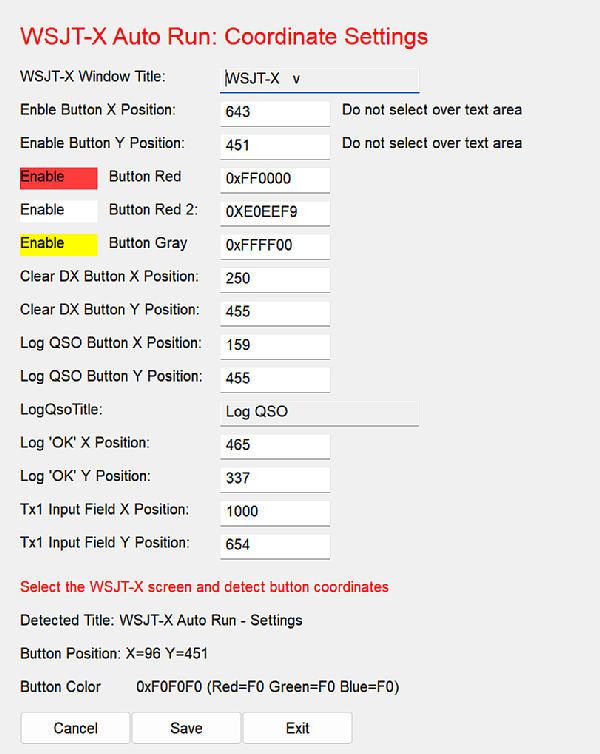

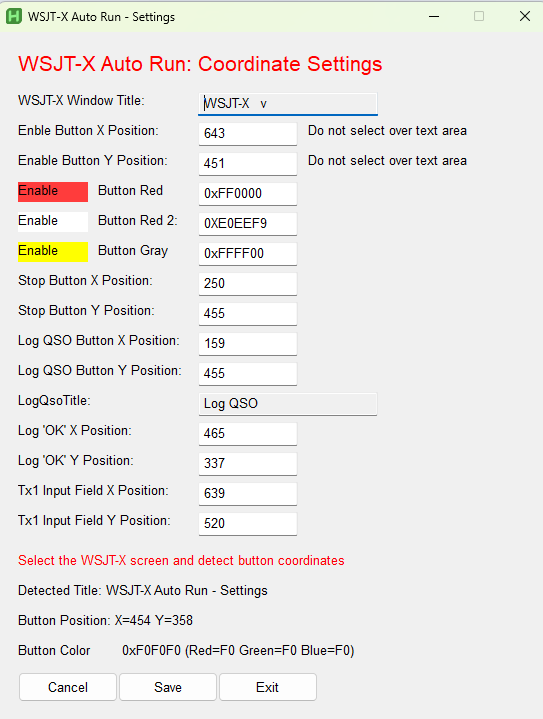

Below is the screen that opens with 'setting'
Make sure the WSJT-X window is active and check the following items:
Once you have the coordinates, press 'keep' and then 'end'WSJT-X.and.WSJT-X automatic operation.Please restart your computer.
Take the red colour when transmitting and the white and yellow colour when stopped.
I think it's fine as it is
'Stop'Please take the coordinates of the button.
'Log QSOs'Please take the coordinates of the button.

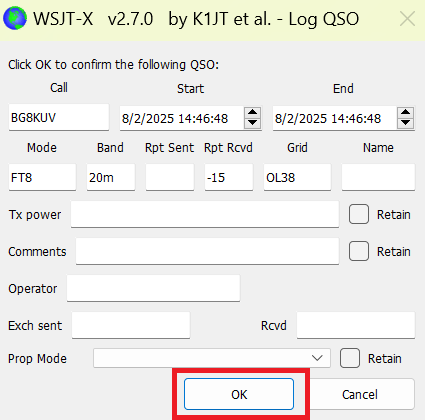

Take the coordinates of the 'OK' button on the logging screen.
Take the coordinates of the Tx1 input field.
Used for QSO log search and country search
Operation test
Press the 'Autonomous driving' button on your console.
Press 'Enable' in WSJT-X to turn it red
Double-click the 'Stop' button on the console
If 'Enable' turns white, the coordinates of 'Enable' have been obtained.
Press the 'Autonomous driving' button on your console.
Enter an appropriate string in the Tx1 field of WSJT-X.
Press 'Enable' in WSJT-X to turn it red
Press 'Stop sending' to turn 'Enable' white
Wait a while, the text in the Tx1 column will disappear, 'Enable' will
turn red, and a CQ will be sent.
'Stop' The button coordinates have been obtained.
Log search and entity search.

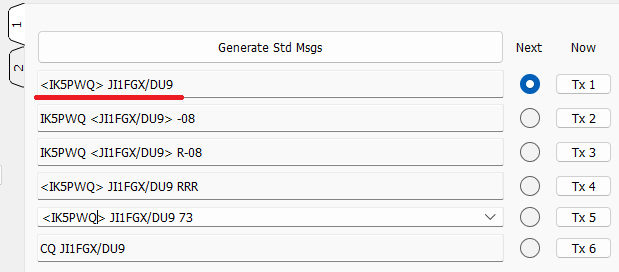

Enter your callsign in the Tx1 field either manually or by regular communication and press enter.
When manually entering, just enter the callsign or prefix you want to search for.
This feature can be used without 'Autonomous driving'.

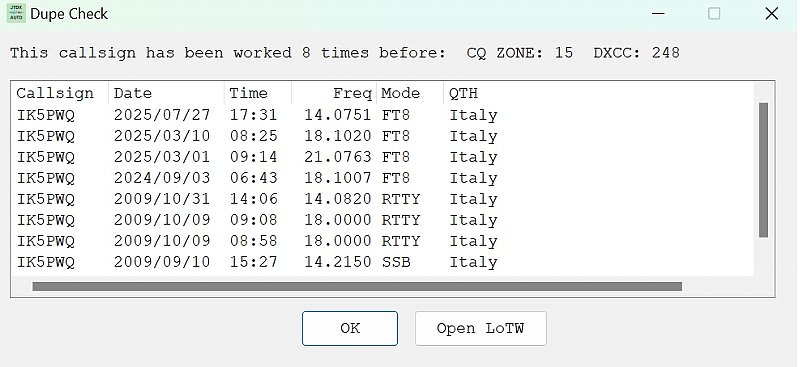

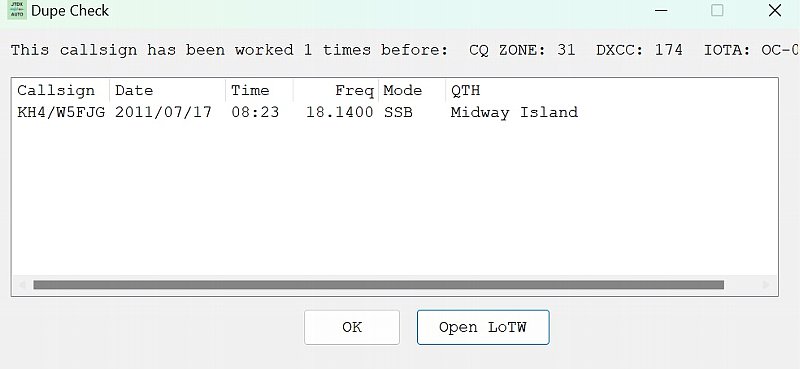

If you have contacted the station in the past, a list of those contacts will be displayed, along with the CQ ZONE and DXCC number.
displayedDouble-click the callsign.This will open QRZ.COM. Double-click on the country name.This will open Google Maps.
WSJT-X doesn't show you if you've already communicated with a station, so I added this feature.
Also, if you right-click on the country name, you can see if you have communicated with it in the past.
If you have not yet contacted it will be displayed as uncontacted.
You can also search by prefix only
WSJT-X does not display the country name except for stations that are sending CQ.
You can easily check 'What country is this prefix from?''What kind of country?'
Clicking on 'Open LoTW' will open the LoTW page where you can check if your order has been confirmed.
You need a LoTW account to view 'Open LoTW'

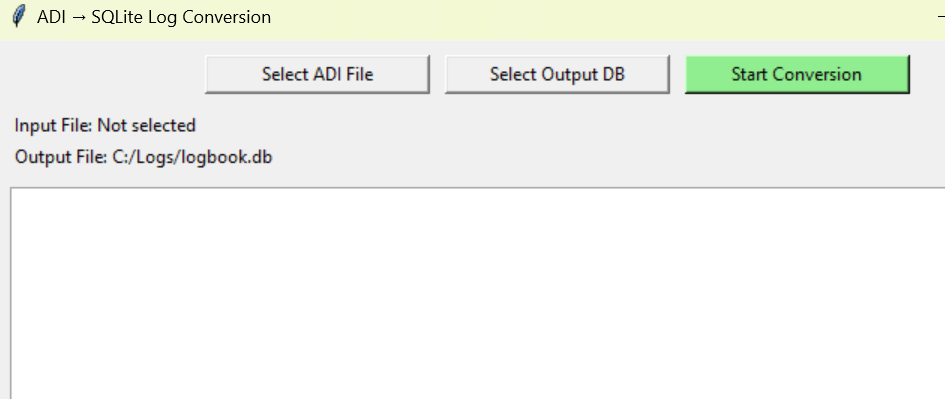

To perform a log search, the ADI files of past logs must be converted into SQL database data.
Checked with ADI files such as JTDX, WSJT-X, Turbo HAMLOG, etc. adi_to_db.1.0.exe.is in the unzipped folder, so please run it.
However, to record WSJT-X and JTDX logs in real time, you will need the separately distributed log_receiver_Ver2.6.5
