CQ Machine YAESU version (2025/08/10)

CQ Machine Program.
This is a CQ machine program for YAESU transceivers.
FTDX3000.,FT-991,FT-891.Compatible with FTDX10, FTDX101, FT-710, FTDX-1200, and FTDX5000.
Tested on FTDX3000 and FT-891
SSB mode only

This program is available in Japanese, English and German
Automatically detects the installed OS language and switches the display language.



CQ_Machine_Ver1.4_2.zip.
CQ_Machine_Ver1.4_3.zip
CQ_Machine_Ver1.4_4.zip
CQ_Machine_Ver1.4_5.zip
CQ_Machine_Ver1.5_1.zip
CQ_Machine_Ver1.5_2.zip
CQ_Machine_Ver1.5.3.zip

Download count: 13
This program requires the installation of the CP210x_Universal_Windows_Driver.
If you are using JTDX or WSJTX, it should already be installed.
It can be downloaded from the YAESU website.

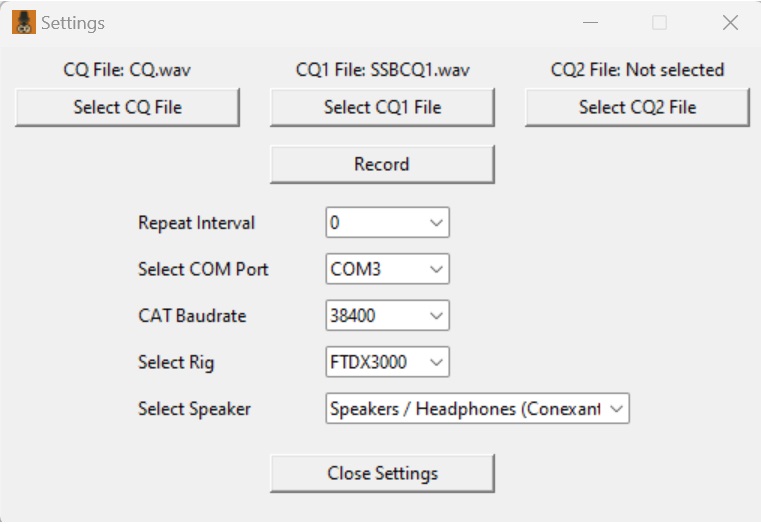

setting.Press to open the settings screen.
CQ file. Display of selected wav file
Select a file. Select a pre-recorded CQ file.
You can select up to three files.
recording. Record WAV files.
CQ repeat time in seconds. Specifies the number of seconds to repeat the CQ.
COM port selection. CAT port for PTT control.
CAT baud rate. You can choose from 4800, 9600, 19200, and 38400 bps.
Select your rig model.  FTDX3000.,FT-991,FT-891.,FTDX10,FTDX101.
Compatible with FT-710, FTDX-1200, and FTDX5000
Select your speaker. Select USB Audio CODEC.

recording.Press the button to start recording for CQ.

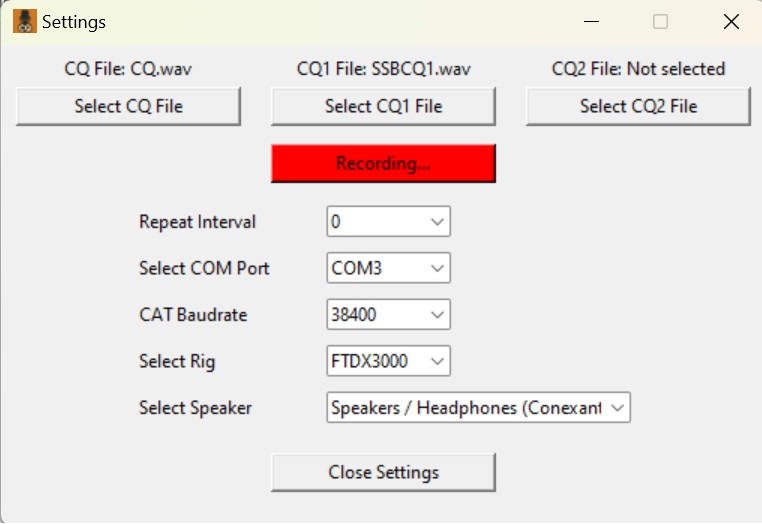

Recording in progress.Press the button to stop recording.

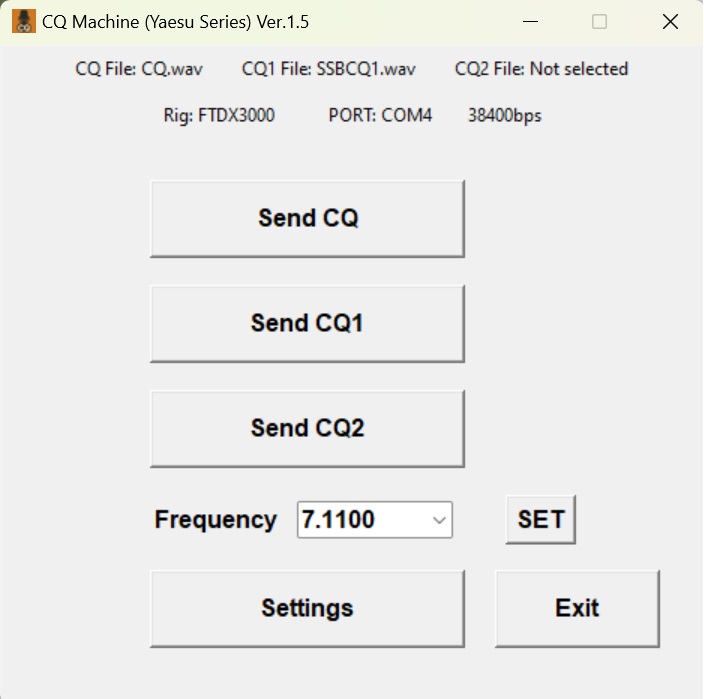

Send out a CQ.Pressing this will automatically put your radio on air and send the CQ file.

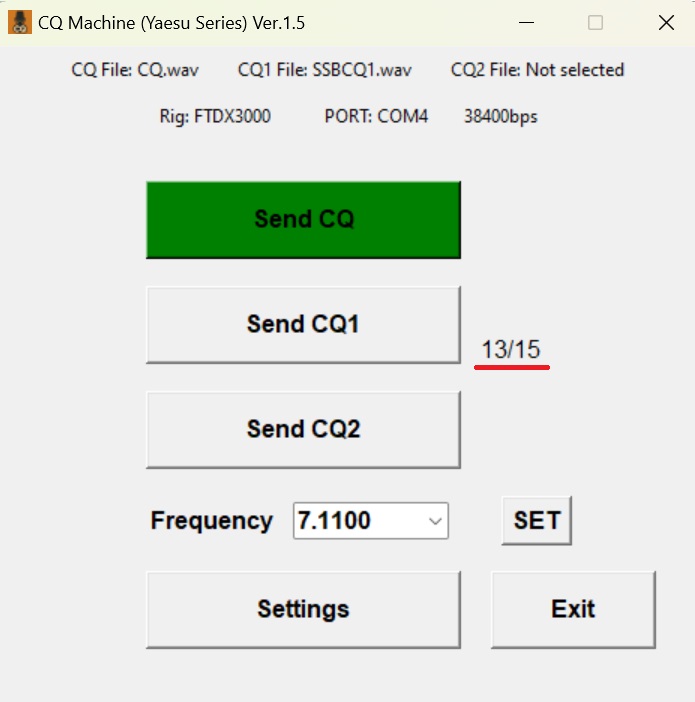

When the CQ transmission is finished, the set number of seconds will count down and the CQ will be transmitted again.
in advanceSettings screen.You can send three CQ files specified in
Press the PTT button on the microphone to end automatic transmission.

You can switch frequencies by selecting the radio frequency from the pull-down menu or by entering it.
For frequencies below 7.2MHz, switch mode to LSB.

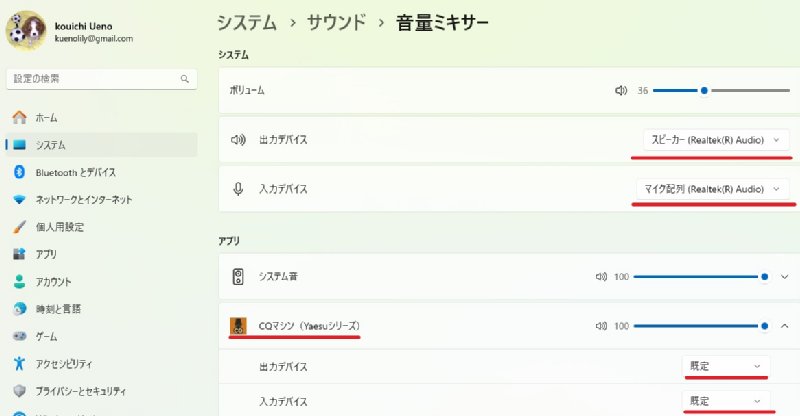

All sound volume mixer settings can be left at their default values.

 please.
I would appreciate it if you could test it with FT-991, FTDX10, FTDX101, FT-710, FTDX-1200, and FTDX5000.
Also, please tell me other radios that have a USB port.
