For APRS.Soft TNC Operation Manual (2025/10/11)

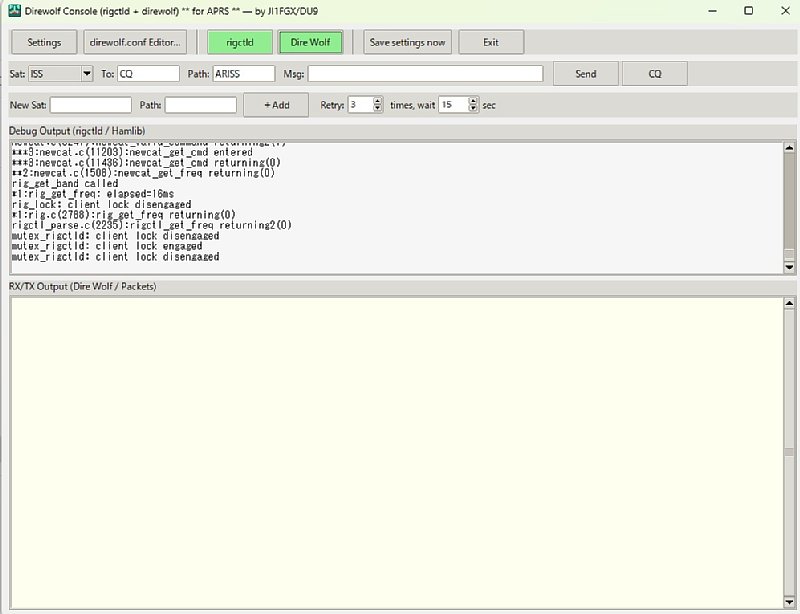

Launch the APRS Soft TNC on your desktop.

Configure the installation.25/10/10.It is assumed that the article has been completed as described above.

Launch Rigctld and Dire Wolf.
If [AGW] connected 127.0.0.1:8000 is displayed, the startup was successful.
[INFO] Settings loaded from: C:\direwolf_console\direwolf_console.ini. [INFO] Loaded rig settings: mfg=Yaesu model=FTDX-3000 COM=COM9 baud=38400 [INFO] rig_table loaded: 72 makers / 304 models from C:\direwolf_console\rig_table.txt [CMD] C:\direwolf_console\rigctld.exe -m 1037 -r COM9 -s 38400 -vvvv [CWD] C:\direwolf_console [DLL] C:\direwolf_console\DLLs rigctld.c(546) Startup: C:\direwolf_console\rigctld.exe -m 1037 -r COM9 -s 38400 -vvvv rigctld Hamlib 4.7~git 2025-09-22T21:53:33Z SHA=b1a673 64-bit Report bugs to<hamlib-developer@lists.sourceforge.net> .... [AGW] connected 127.0.0.1:8000 [INFO] AGW monitor auto-started on 127.0.0.1:8000
If the following message is displayed, the COM port connection has failed. Check the port in Device Manager.
Access denied. COM9 No such file or directory Backend version: 20241118.12, Status: Stable

Executive optical glasses shop made my daughter Jolyan's glasses for farsightedness about 10 months ago.

Both the Rigctld and Dire Wolf buttons should be green.
Turn on Rigctld and then turn on Dire Wolf.

Sat:
Please select the satellite you would like to broadcast from.
If communicating with a ground station, leave blank
To:
Specify CQ or contact person
Please specify the call sign correctly, including the SSID. Example: DW8BXU-1
Path:
Enter the satellite or callsign you want to digipeat
Specify WIDE1-1 and nearby stations will digipeat
Msg:
Enter the message you want to send. Kanji characters cannot be used.
CQ
Send a CQ containing your message
Send
Send a message to the person you are communicating with.
If you specify a path, it will digipeat

APRS AX.25 is connectionless, so if an ACK is returned, the message transmission was successful.
If no ACK is returned, the specified number of retries will be attempted before timing out.

You can send CQ, CQ via digipeater, or messages.

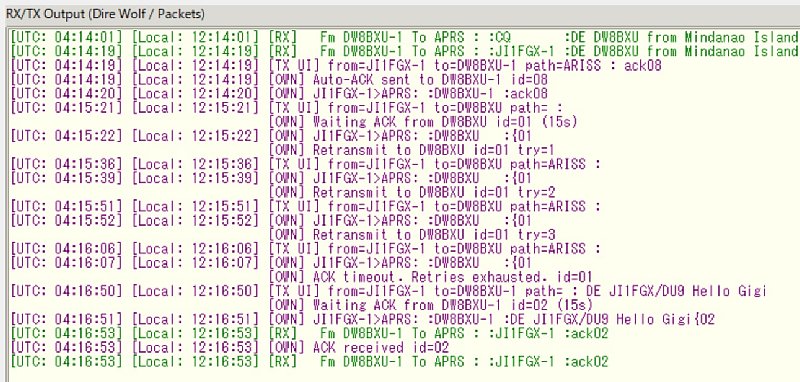

Frame Description
[UTC: 04:16:50] [Local: 12:16:50] [TX UI] from=JI1FGX-1 to=DW8BXU-1 path= : DE JI1FGX/DU9 Hello Gigi.	CQ from DW8BXU.
[UTC: 04:14:19] [Local: 12:14:19] [RX] Fm DW8BXU-1 To APRS : :JI1FGX-1 :DE DW8BXU from Mindanao Island{08	CQ using JI1FGX-1 as a digipeater.
[UTC: 04:14:19] [Local: 12:14:19] [TX UI] from=JI1FGX-1 to=DW8BXU-1 path=ARISS : ack08.	Dedgepeted the frame.
[UTC: 04:14:19] [Local: 12:14:19] [OWN] Auto-ACK sent to DW8BXU-1 id=08.
[UTC: 04:14:20] [Local: 12:14:20] [OWN] JI1FGX-1>APRS: :DW8BXU-1 :ack08.	JI1FGX-1 returned an ACK to DW8BXU-1.
[UTC: 04:15:22] [Local: 12:15:22] [OWN] JI1FGX-1>APRS: :DW8BXU :{01. [OWN] Retransmit to DW8BXU id=01 try=1. [UTC: 04:15:36] [Local: 12:15:36] [TX UI] from=JI1FGX-1 to=DW8BXU path=ARISS : [UTC: 04:15:39] [Local: 12:15:39] [OWN] JI1FGX-1>APRS: :DW8BXU :{01 [OWN] Retransmit to DW8BXU id=01 try=2 [UTC: 04:15:51] [Local: 12:15:51] [TX UI] from=JI1FGX-1 to=DW8BXU path=ARISS : [UTC: 04:15:52] [Local: 12:15:52] [OWN] JI1FGX-1>APRS: :DW8BXU :{01 [OWN] Retransmit to DW8BXU id=01 try=3 [UTC: 04:16:06] [Local: 12:16:06] [TX UI] from=JI1FGX-1 to=DW8BXU path=ARISS : [UTC: 04:16:07] [Local: 12:16:07] [OWN] JI1FGX-1>APRS: :DW8BXU :{01 [OWN] ACK timeout. Retries exhausted. id=01	JI1FGX-1 sent a message to DW8BXU. DW8BXU does not exist so retrying.
[UTC: 04:16:50] [Local: 12:16:50] [TX UI] from=JI1FGX-1 to=DW8BXU-1 path= : DE JI1FGX/DU9 Hello Gigi.	JI1FGX-1 sent Hello Gigi to DW8BXU-1.
[OWN] Waiting ACK from DW8BXU-1 id=02 (15s)	Waiting for ACK from DW8BXU-1.
[UTC: 04:16:53] [Local: 12:16:53] [RX] Fm DW8BXU-1 To APRS : :JI1FGX-1 :ack02.	ACK from DW8BXU-1.
[UTC: 04:16:53] [Local: 12:16:53] [OWN] ACK received id=02.	ACK received.
