ICOM IC-820H PLL UNLOCK repair (2025/10/09)

ICOM IC-820H, acquired from DU9JJY for satellite communications.
However, after about 5 minutes of turning on the power,

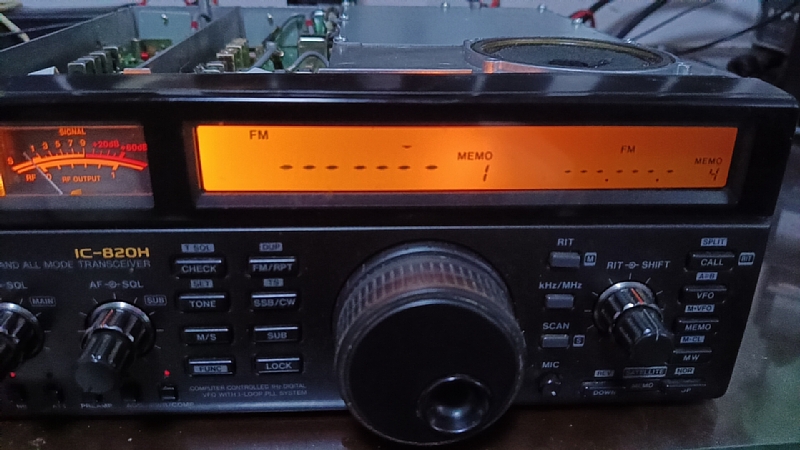

the frequency display showed both VHF and UHF '-------' and the PLL was in an UNLOCK state.
It will return to normal in about 5 to 10 minutes and then you can use it normally.

However, if you turn off the power, wait for it to cool down, and then turn it on again, it will return to the same PLL UNLOCK state.

What I did this time
0) When ICOM IC-820H is turned on, the PLL becomes UNLOCK for about 5 minutes. It returns to normal after 5 to 10 minutes.
1) Fixing the symptoms by disassembling the case
2) Put the case back together and try to reproduce the symptoms. Confirm that the PLL lock is fixed in about 5 minutes.

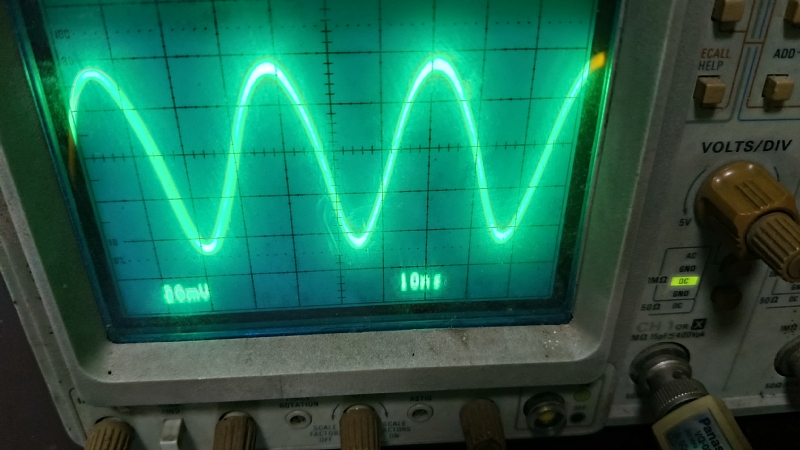

3) 30.2MHz PLL/DDS reference oscillator X1 is suspected to be faulty and checked with an oscilloscope.
4) Confirm that the PLL lock is released when the output of X1 is grounded.
5) At this point, I suspect a defect in the X1.
6) However, even if you warm up the PLL circuit of X1 or V/UFH with a hair dryer, the PLL lock remains unlocked.
7) Reassemble the case and check that the PLL is locked after about 5 minutes.
8) I tried heating the IF board in order with a hair dryer and found that the PLL locked when I heated the circuit called MP1.

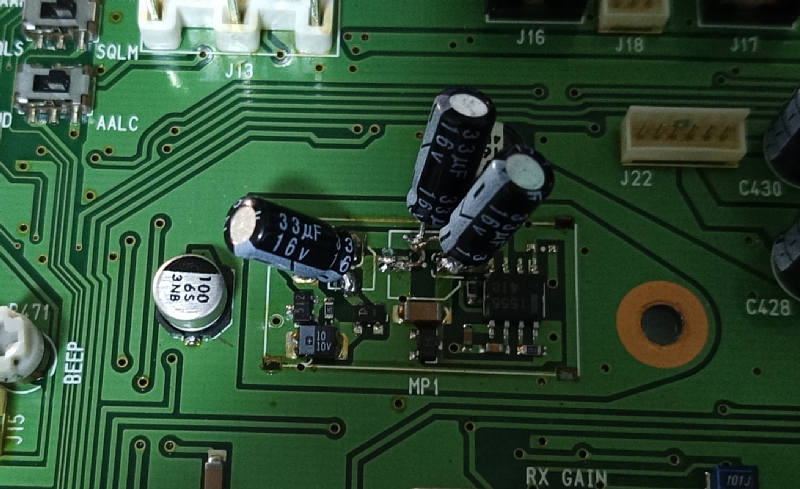

9) Cool each part of the MP1 (small regulator/power module) with cooling spray.
Confirmed that 10uF and 47uF electrolytic capacitors are effective for PLL unlock
10) I confirmed that the PLL unlock function improved when I replaced
the 33uF electrolytic capacitors I had with 10uF and two 33uF capacitors with 47uF.
11) I bought a 16V 100μF from an electrical parts shop in Ozamiz and completed the repair.

I searched for a PLL unit but couldn't find one.
ChatGPTChatGP found the service manual and when I checked it, it said 'Remove the MAIN unit'

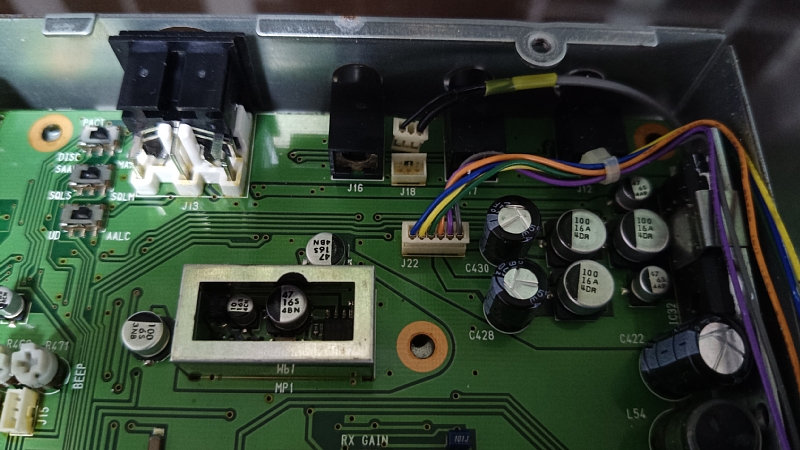

So I took pictures of all the connectors connected to the main unit board,
removed them, and then removed the board, but the PLL unit did not come out.

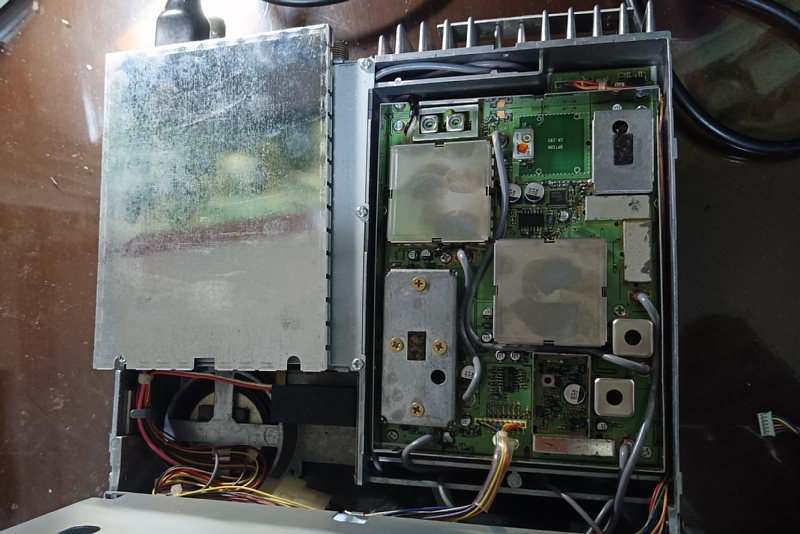

By removing the four screws that secure the main unit, the PLL unit was revealed.

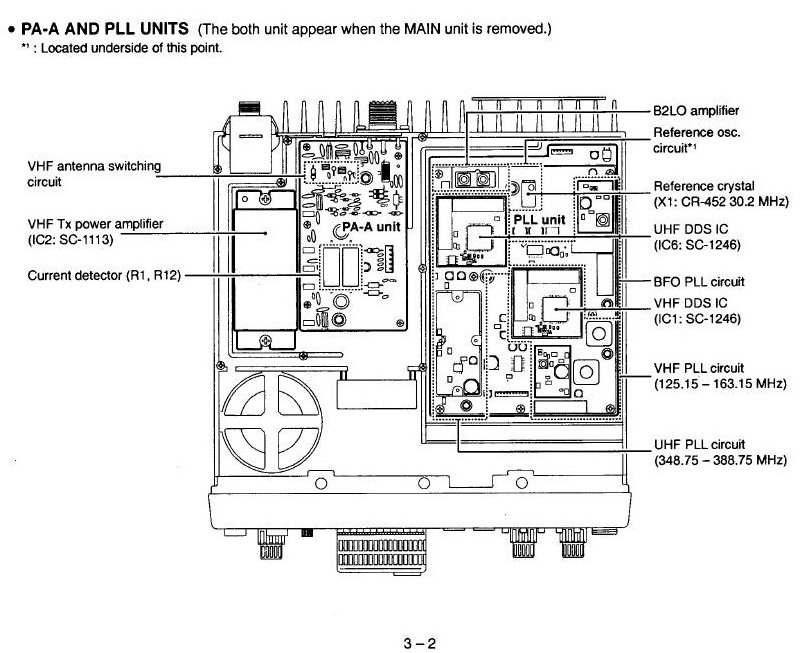

below.

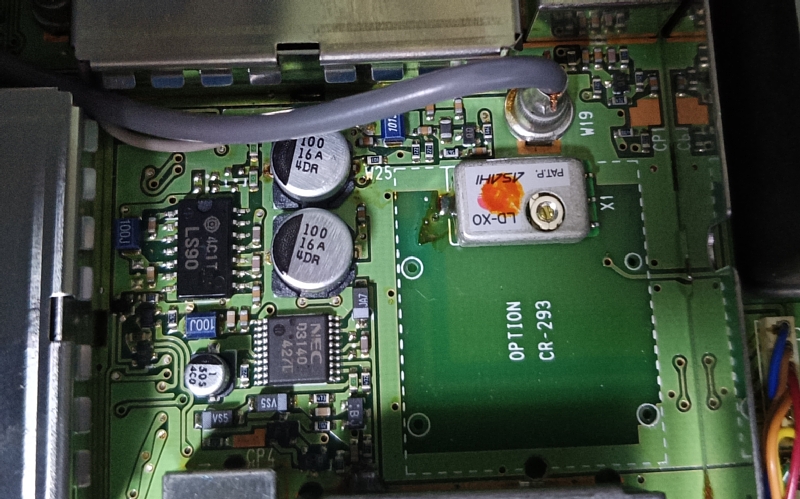

PLL/DDS reference oscillator x1
VHF PLL circuit
UHF PLL circuit
VHF DDS circuit
UHF DDS circuit
There was

At first, I suspected a faulty oscillation in the reference oscillator X1.

Even after warming each unit with a hair dryer, the PLL does not lock and the frequency display remains abnormal.

If you leave the case off, the PLL will remain unlocked no matter how long you wait.
If you then put the case back in place, the PLL will lock in about 5 minutes and the frequency display will return to normal.
It was confirmed that the symptoms could be reproduced by repeatedly removing and replacing the case.
As a result of this test, I began to think that the problem might not be with the reference oscillator or the PLL unit.

However, it still transmits even when the PLL is unlocked.

I tried warming the main unit up little by little with a dryer.

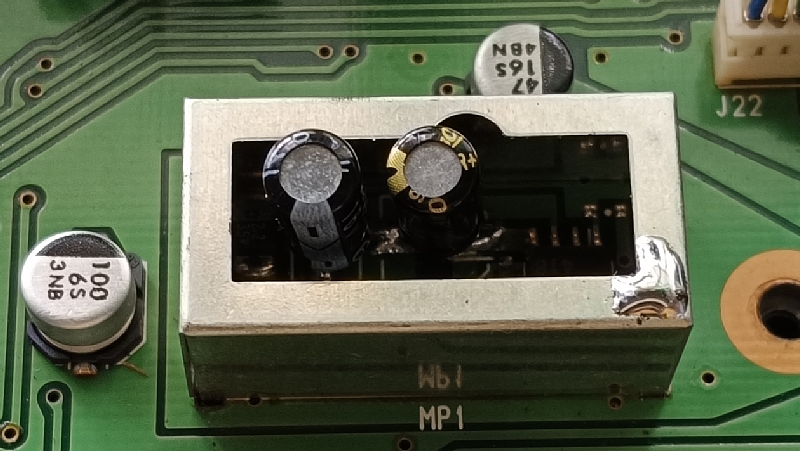

Then, when I warmed up this MP1 unit, the frequency returned to normal.

According to ChatGPT, this appears to be a switching power supply for the PLL unit.
If I heat it with a hair dryer and then cool it with cooling spray, the frequency display becomes abnormal again.
Even if I heat it up again with a hair dryer and cool the IC, the frequency display remains normal.
Next, when the two capacitors are cooled, the frequency display becomes abnormal.

It looks like these two electrolytic capacitors are bad.

Tested the operation with a handheld electrolytic capacitor.

The PLL unlocking problem was fixed.

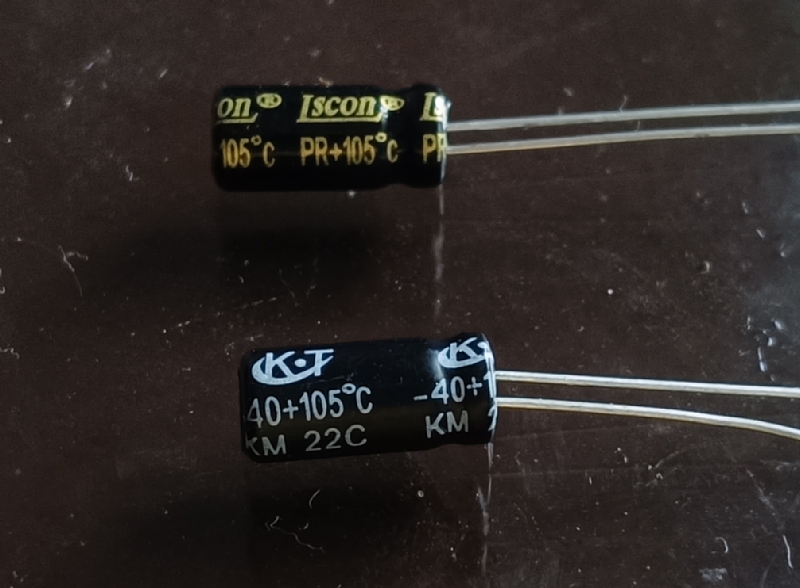

The Ozamiz electronic parts shop didn't sell surface mount electrolytic capacitors, so I bought a regular 100μF 16V electrolytic capacitor.

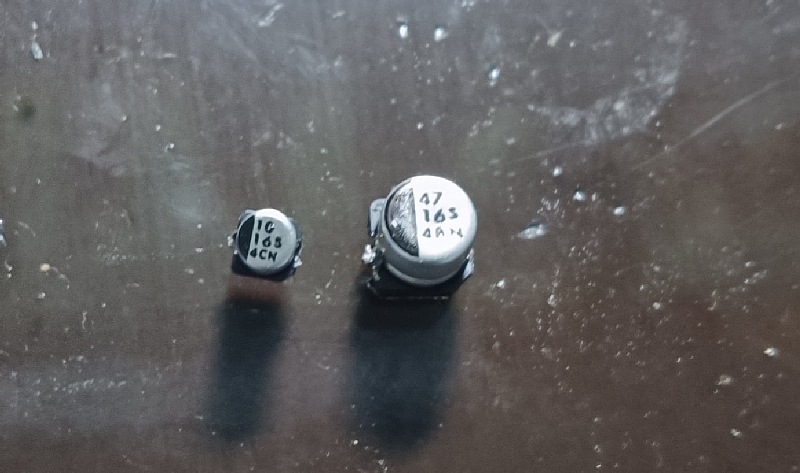

Replaced two electrolytic capacitors.

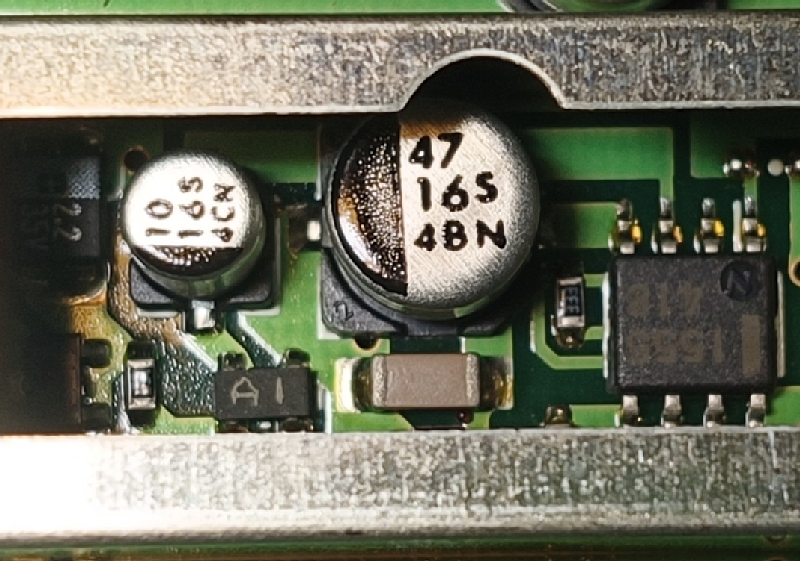

The right is 100μF 16V
The left is 47μF 16V

It's sticking out from the metal case, but that can't be helped.

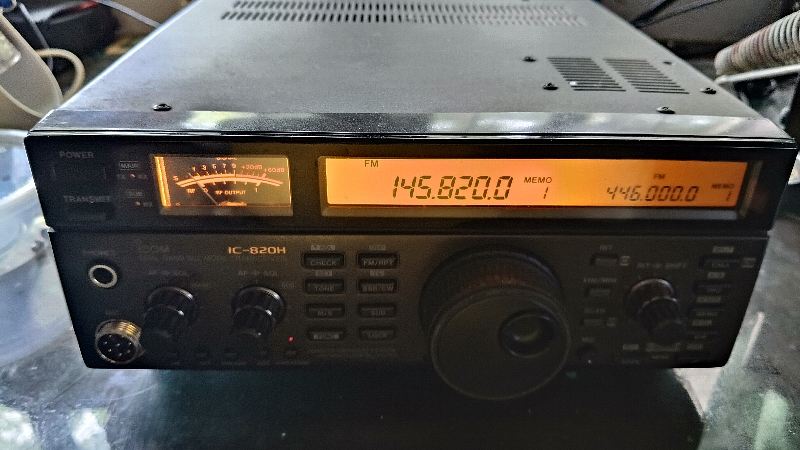

Repair completed!
I'm grateful that there's a small electronic parts store in Ozamiz, Mindanao.
When I told the female owner of the store 'I love this UNITRUST', she seemed happy.

October 5, 2025. October 9, 2025.
