435MHz Cross Yagi Antenna Construction and Preparation (2025/10/05)
Cross Yagi antenna required for satellite communications.

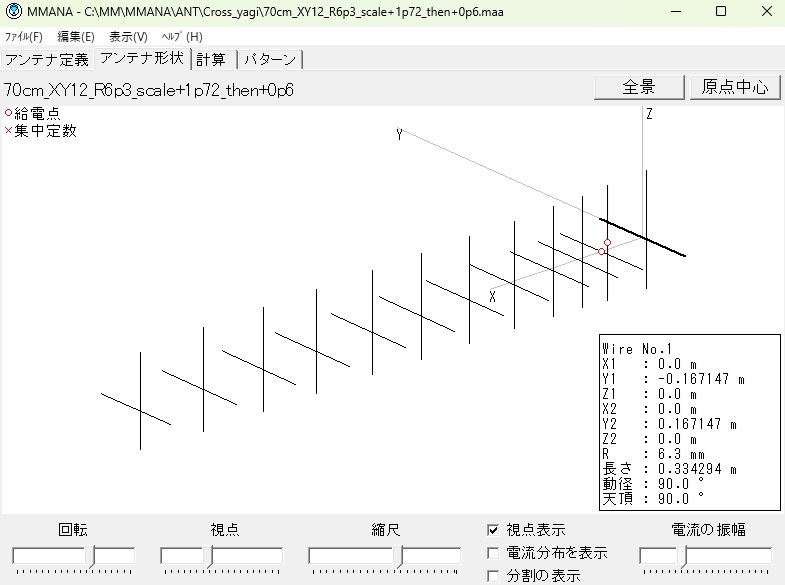

Designed a 145MHz cross-yagi on October 2, 2025.Next, I designed a 435MHz cross-Yagi using MMANA.

Next is the design of the power supply.
It took half a day, but I managed to finish it.

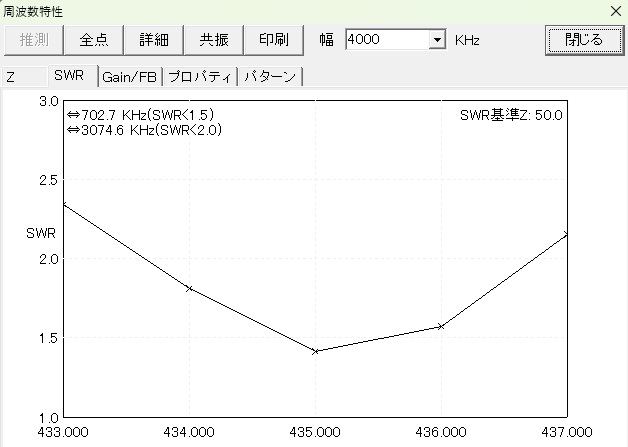

The SWR is also 1.5 at the target frequency of 435.00MHz.
Compared to the SWR of the 145MHz cross yagi antenna, which was 1.06, this is a little higher, but still sufficient.

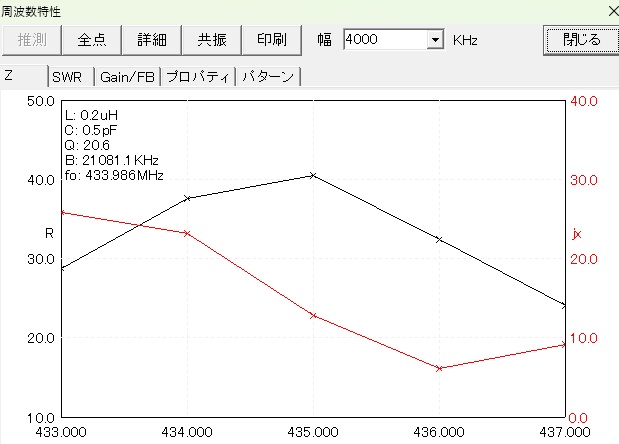

The impedance is Z = 25 + j30 Ω.

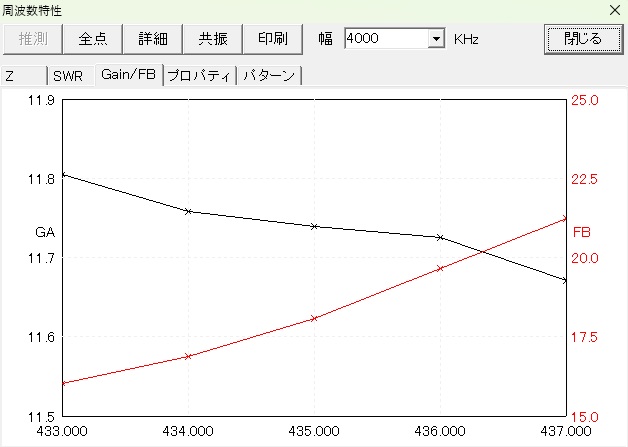

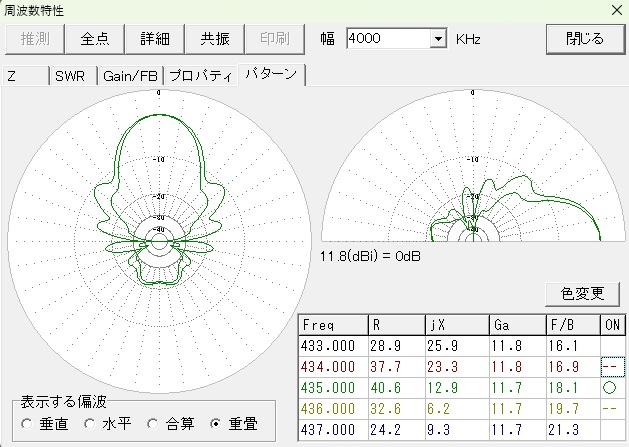

Ga is 11.7dBi.
F/B is 18.1dBi

Download the MMANA data here.
70cm_XY12_R6p3_scale+1p72_then+0p6.maa
70cm_XY12_R6p3_scale+1p72_then+0p6.
*
435.0
*** Wire ***
twenty four
0.000000, -0.167147, 0.0, 0.000000, 0.167147, 0.0, 6.3e-03, 0
0.141778, -0.162006, 0.0, 0.141778, 0.162006, 0.0, 6.3e-03, 0
0.221549, -0.156503, 0.0, 0.221549, 0.156503, 0.0, 6.3e-03, 0
0.318079, -0.154713, 0.0, 0.318079, 0.154713, 0.0, 6.3e-03, 0
0.452483, -0.152258, 0.0, 0.452483, 0.152258, 0.0, 6.3e-03, 0
0.603310, -0.150940, 0.0, 0.603310, 0.150940, 0.0, 6.3e-03, 0
0.766310, -0.148184, 0.0, 0.766310, 0.148184, 0.0, 6.3e-03, 0
0.929310, -0.144974, 0.0, 0.929310, 0.144974, 0.0, 6.3e-03, 0
1.119310, -0.145407, 0.0, 1.119310, 0.145407, 0.0, 6.3e-03, 0
1.299310, -0.145367, 0.0, 1.299310, 0.145367, 0.0, 6.3e-03, 0
1.500310, -0.145554, 0.0, 1.500310, 0.145554, 0.0, 6.3e-03, 0
1.713310, -0.136212, 0.0, 1.713310, 0.136212, 0.0, 6.3e-03, 0
-0.045945, 0.033517, -0.167147, -0.045945, 0.033517, 0.167147, 6.3e-03, 0
0.091811, 0.033517, -0.162006, 0.091811, 0.033517, 0.162006, 6.3e-03, 0
0.174934, 0.033517, -0.156503, 0.174934, 0.033517, 0.156503, 6.3e-03, 0
0.272469, 0.033517, -0.154713, 0.272469, 0.033517, 0.154713, 6.3e-03, 0
0.406538, 0.033517, -0.152258, 0.406538, 0.033517, 0.152258, 6.3e-03, 0
0.557366, 0.033517, -0.150940, 0.557366, 0.033517, 0.150940, 6.3e-03, 0
0.720310, 0.033517, -0.148184, 0.720310, 0.033517, 0.148184, 6.3e-03, 0
0.883310, 0.033517, -0.144974, 0.883310, 0.033517, 0.144974, 6.3e-03, 0
1.073310, 0.033517, -0.145407, 1.073310, 0.033517, 0.145407, 6.3e-03, 0
1.253310, 0.033517, -0.145367, 1.253310, 0.033517, 0.145367, 6.3e-03, 0
1.454310, 0.033517, -0.145554, 1.454310, 0.033517, 0.145554, 6.3e-03, 0
1.667310, 0.033517, -0.136212, 1.667310, 0.033517, 0.136212, 6.3e-03, 0
*** Feed Point ***
2,0
w2c,0.0,1.0
w14c,119.25,1.0
*** Lumped constant ***
0,1
*** Automatic Split ***
600,60,2.0,1
*** Computing environment ***
0,16.0,4,50.0,120,60,0
October 4, 2025.   October 9, 2025.
