| SatBox for satellites under development, Part 3 (2026/08/16) | ||
|---|---|---|

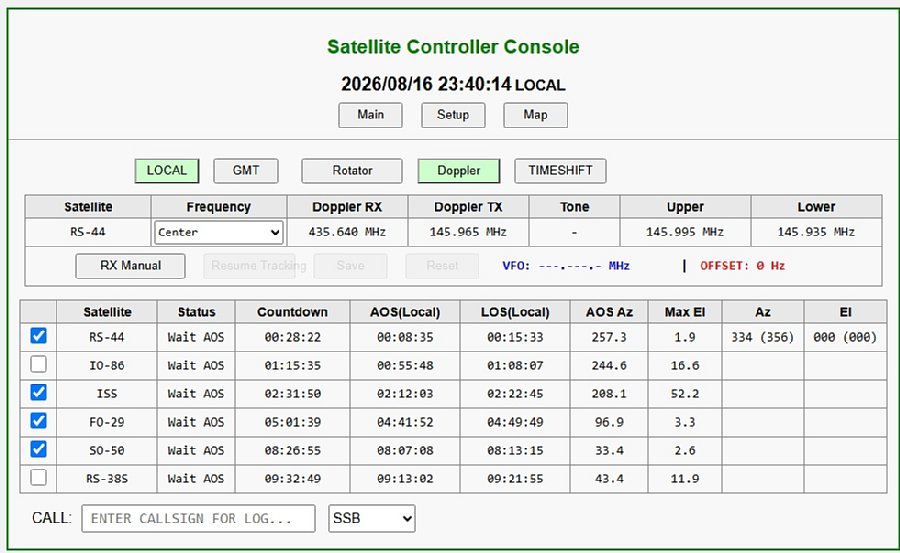

| SatBox is being developed for satellite communications. A function to display a map.And when the satellite performs AOS (enters visible range).Alarm function.Added.  |
||

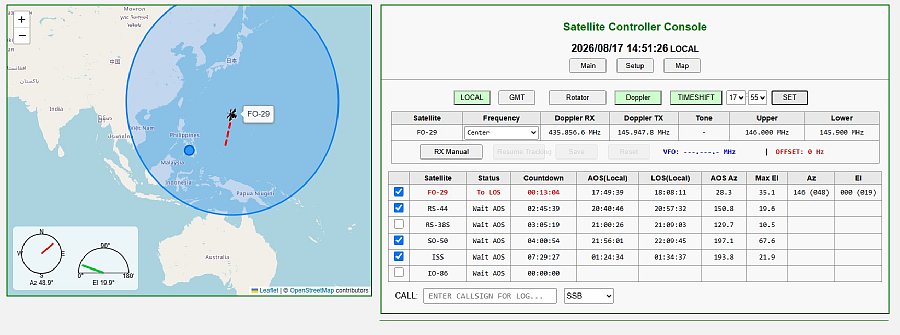

The console and map are displayed side by side. |
||
| This is a map showing the location of the satellite. Press the 'map' button on the console to enlarge the display.  |
||
| This shows the satellite name and direction of travel. The circle indicates the range of the radio waves.  |
||

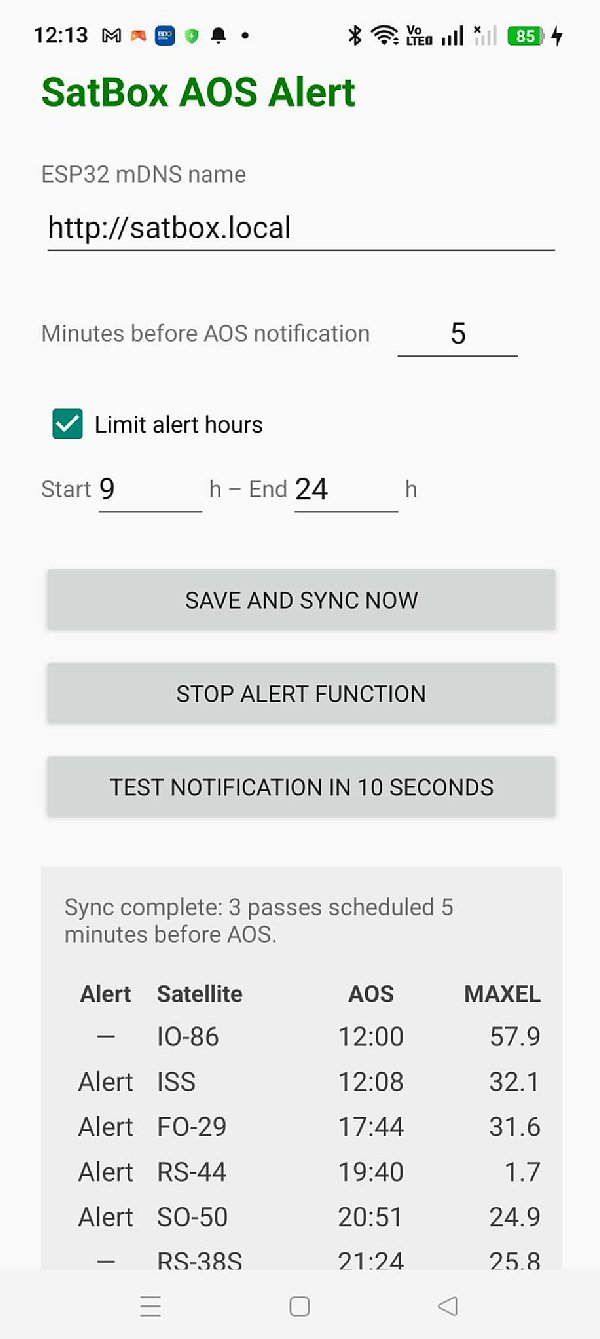

| By integrating with SatBox, you can set up an alarm on your Android smartphone when it enters your field of view (AOS). By specifying how many minutes before AOS the alarm should sound and pressing 'Save and sync now', the AOS alert will start. You can also specify the time period during which the alert will sound. This feature is only available within a local area network.  |
||

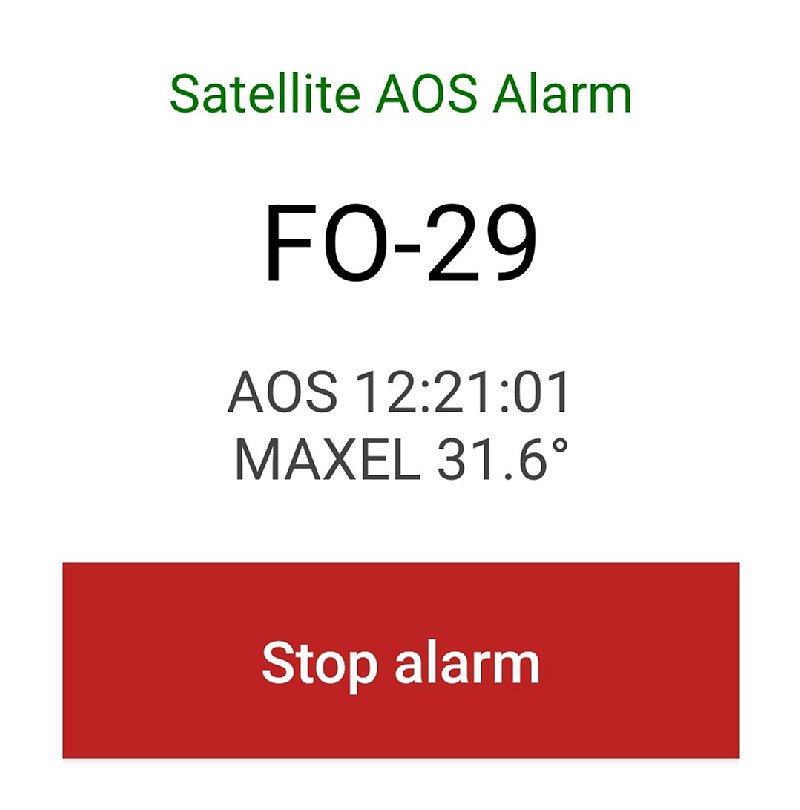

The alarm screen may appear even if other apps are running on your smartphone or if you are on the home screen. |
| August 5, 2026. August 22, 2026. |
