3.5MHz Zepp antenna adjustment (2025/09/12)

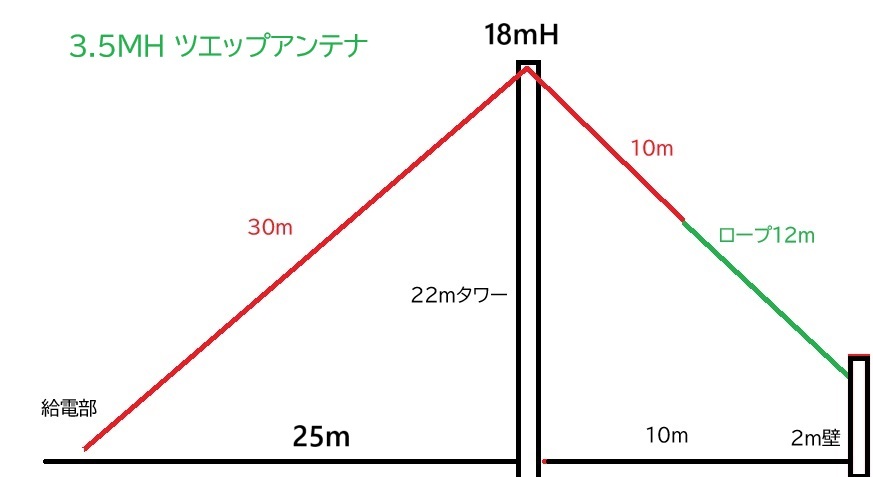

October 15, 2024.My friend JK1SNS sent me an unused 3.5MHz Zepp antenna via EMS mail.
andMay 11, 2025.We carried out construction work to install elements.
RG8 coaxial cable 10m　2,995 pesos (approx. 8,000 yen)　I can't buy it.June 18, 2025.Purchased at last.
In August, the element on the 10m side came off the rope, so we asked a local junior high school student to climb up the tower and fix it.

And finally, on September 11th, we made the adjustments.

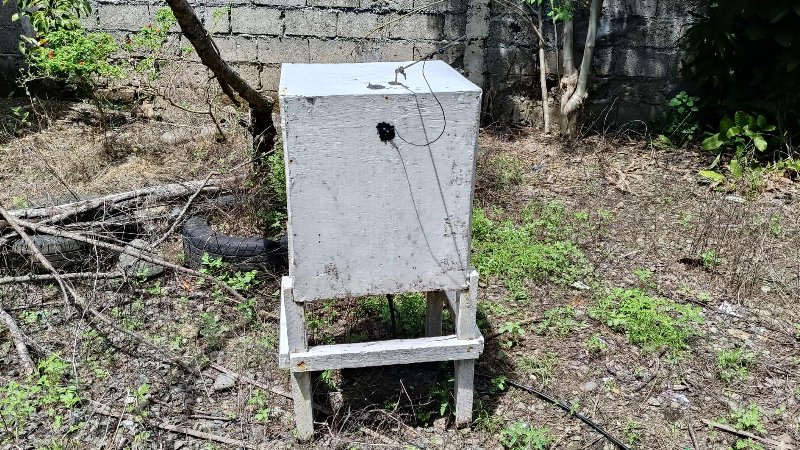

Wooden box containing the tuning circuit for the Zepp antenna

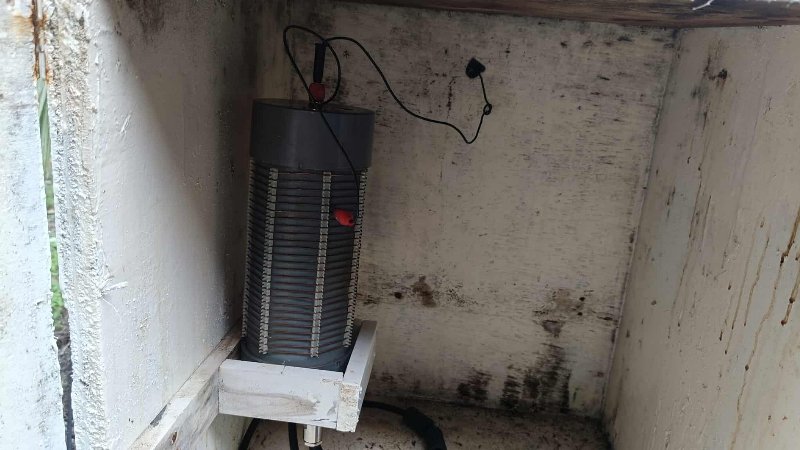

PVC pipe containing the coil and variable capacitor.
According to JK1SNS, it can be used from 3.5MHz and 3.8MHz to 7MHz.
When measured directly under the coil with a NanoVNA, the SWR and Smith chart were good.

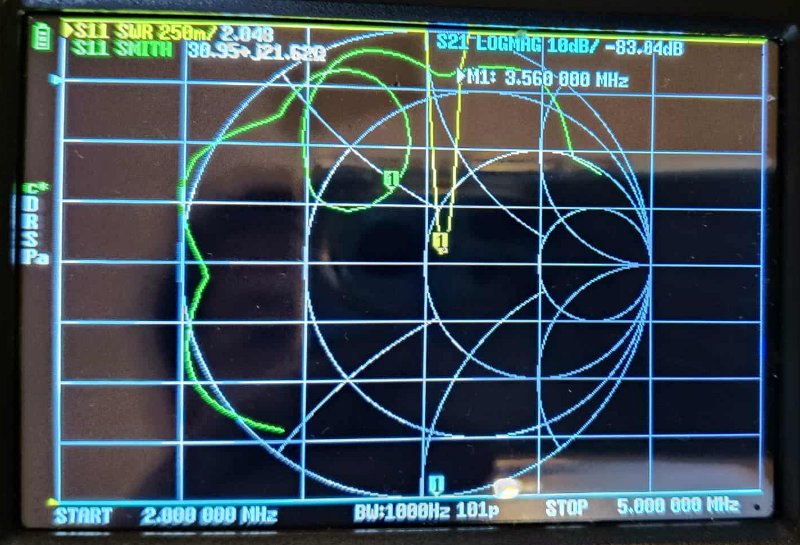

However, when I measured the 40m RG8 coaxial cable at the shack side with the NanoVNA, the SWR was 2.0.
It is possible to go on air using the FTDX3000 antenna tuner, but it feels weird, so I decided to take measures.
Even after adding three snap cores, there was no improvement.
So I made a common mode choke by winding RG58 12 times around the ferrite core I had purchased for the 1:1 balun.

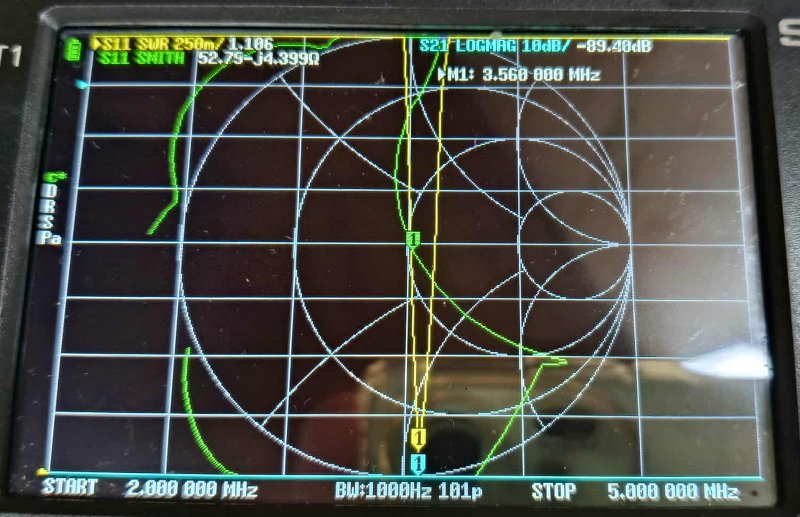

Then the SWR dropped to 1.21.
The tuning frequency has risen to 3.75MHz, so I adjusted the frequency using the coil tap and variable capacitor.

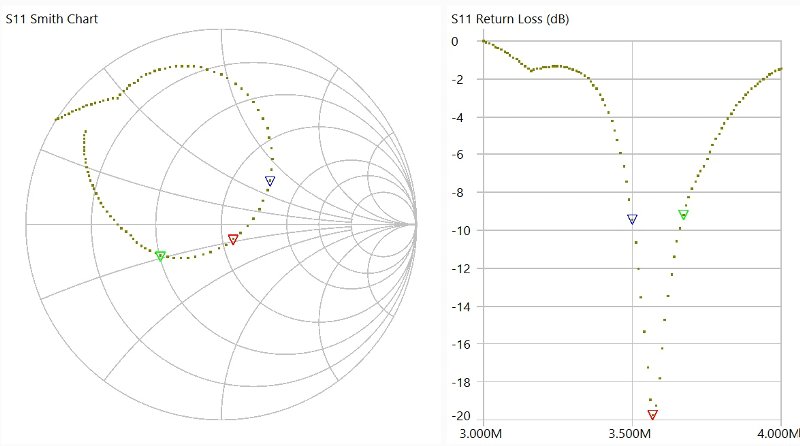

The Smith chart is.

  • The central horizontal line.: Pure resistance component (reactance 0)

  • Above the center.: Inductive reactance

  • Below the center.: Capacitive reactance

Therefore

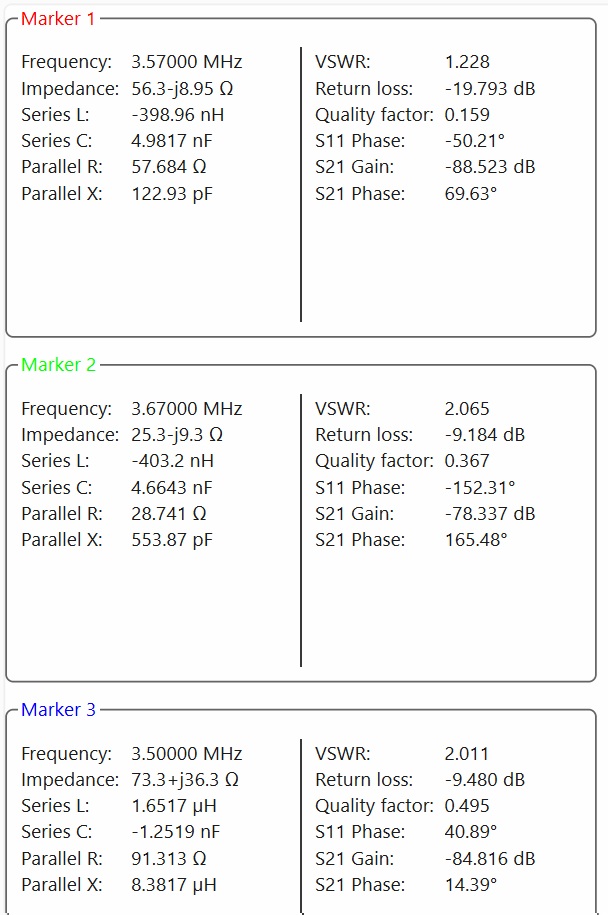

  • 'The impedance is around 50 ohms, but there is a slight capacitive shift.'.

  • 'A slight capacitive reactance remains'.

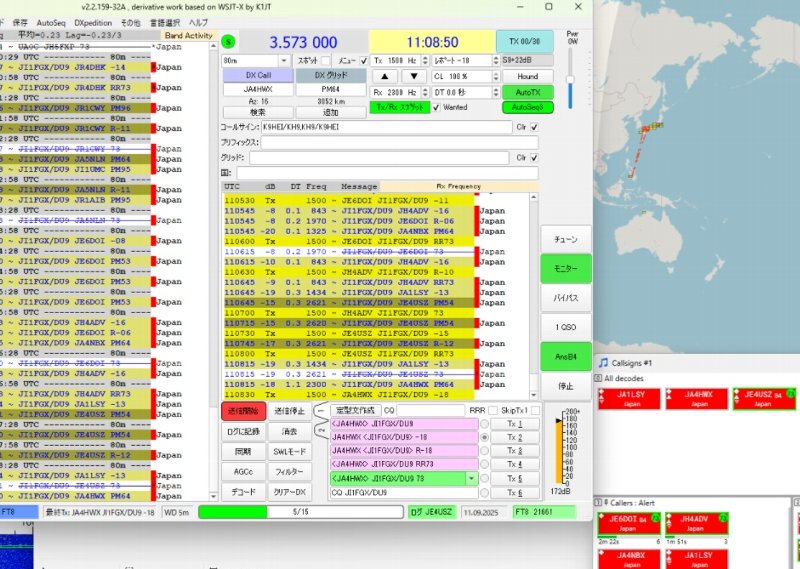

I sent out a CQ on FT8 at 3.573MHz between 6pm and 7pm Philippine time and received calls from many stations.
There are very few stations on Mindanao Island IOTA OC-130 that are on air on the 80m band, so it may be rare.
With autumn conditions in Japan, it looks like we'll be able to enjoy 3.5MHz for a while.
